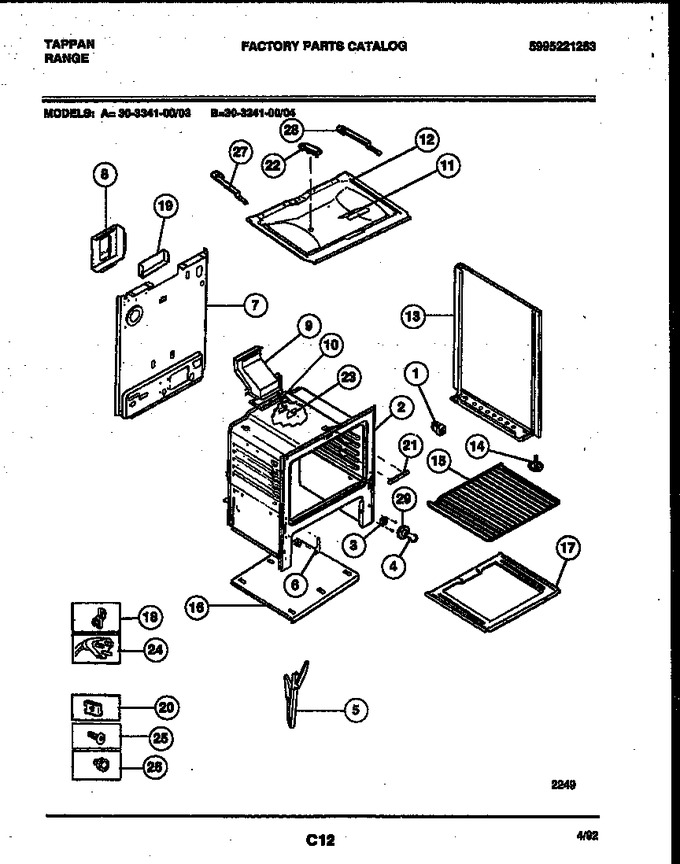

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 3 | 3014073 | Socket-oven Light |
|
- | |||||
| 4 | 5303208582 | Light Bulb |
|
- | |||||
| 5 | 316007001 | Channel-door Hinge (2) |
|
$ 234.55 | |||||
| 6 | 3131570 | Cover-hinge Cutout (2) |
|
$ 7.35 | |||||
| 7 | 3203082 | Back-main |
|
- | |||||
| 8 | 3131660 | Shield, Rear Wall |
|
- | |||||
| 9 | 5303273108 | Flue |
|
- | |||||
| 10 | 08067965 | Gasket-flue |
|
- | |||||
| 11 | 08067757 | Cover Plate |
|
- | |||||
| 12 | 3011597 | Burner Box |
|
- | |||||
| 13 | 5303269518 | Panel-bodyside, White, Rh |
|
- | |||||
| 13 | 5303269519 | Panel-bodyside, White, Lh |
|
- | |||||
| 14 | 5303203397 | Screw, Leveling (4) |
|
$ 14.49 | |||||
| 15 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 16 | 5303270160 | Base-broiler |
|
- | |||||
| 17 | 5303212540 | Bottom, Oven |
|
- | |||||
| 18 | 5303011805 | Clip, Thermo Bulb |
|
- | |||||
| 19 | 5303273110 | Shield-flue |
|
- | |||||
| 20 | 3203010 | Fastener, Hinge (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 21 | 5303015372 | Cover, Front Main |
|
- | |||||
| 22 | 3015371 | Cover-burner Box |
|
- | |||||
| 23 | 3018607 | Cover Plate |
|
$ 10.50 | |||||
| 24 | 5304534377 | Cord, Power (Replaces: 3202006) |
|
$ 26.85 | |||||
| 25 | 316282700 | Screw-oven Bttm. (Replaces: 3131732) |
|
$ 9.93 | |||||
| 26 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 27 | 5303283575 | Brkt Main Top Hinge (lh) |
|
- | |||||
| 28 | 5303283574 | Brkt Main Top Hinge (rh) |
|
- | |||||
| 29 | 5303271606 | Housing,oven Light |
|
- | |||||
| *68603 | 3131244 | Cover, Power Cord |
|
- | |||||
| *68603 | 08067961 | Fastener-power Cord |
|
- | |||||
| *68603 | 08067962 | Fastener-wire |
|
- | |||||
| *68603 | 3014226 | Support-oven Bttm (2) |
|
- | |||||
| *68604 | 19100200029 | Diagram-wiring (not For Purchase.) |
|
- | |||||
| *68604 | 3934056 | Anti-tip Brkt |
|
- | |||||
| 14A | 08010570 | Fastener, Leveling Leg Tee Nut |
|
- | |||||
| 17A | 3017142 | Insulation-oven-wrapper (non-illustrated) |
|
$ 193.50 | |||||
| 17B | 3203541 | Insulation, Oven Back (non-illustrated) |
|
- |
