SELECT A DIAGRAM

01 - Cover

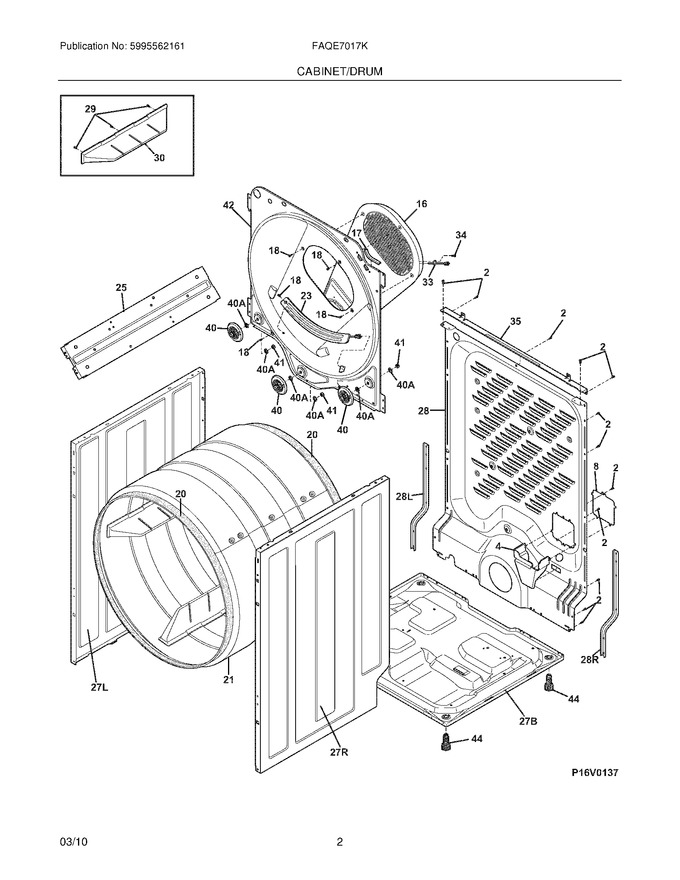

03 - Cabinet/drum


05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
4	134792200		Bracket,mounting ,terminal Block				$ 26.09
8	134694400		Cover,terminal Block				$ 72.18
16	5304508449		Duct,heat ,rear   (Replaces: 134694020)			Immediately	$ 108.44
17	134792900		Protector,edge ,right Top Front ,85.0+/-1.5				$ 13.46
18	131168200		Screw,10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
20	134705900		Seal,felt ,drum				$ 73.45
21	134711900		Drum,dryer ,assembly 36``		Appelez-nous	-
25	134912100		Bracket,mounting ,main Control Bx		Appelez-nous	-
28	134713200		Panel,backsheet ,rear				$ 191.15
29	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
30	137116800		Vane,straight ,white				$ 47.04
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
35	134706200		Bracket,top Panel Mtg. ,rear		Appelez-nous	-
40	5304523155		Roller,wheel ,complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut,3/8-16				$ 2.98
42	137556623		Bulkhead,panel ,rear   (Replaces: 134712815)				$ 311.52
44	137029700		Leveling Leg,screw				$ 18.38
27B	134690203		Base,dryer   (Replaces: 134690200)				$ 273.58
27L	134690345		Panel,left Side ,blue		Appelez-nous	-
27R	134690445		Panel,right Side ,blue		Appelez-nous	-
28L	137029900		Bracket,reinforcement ,left ,backsheet		Appelez-nous	-
28R	137066800		Bracket,reinforcement ,right ,backsheet		Appelez-nous	-
40A	134716700		Washer,flat				$ 2.12
F23	134786110		Sensor-moisture,assembly				$ 92.14
F33	3204267		Thermostat-safety			Immediately	$ 53.49
NI	134716200		Retainer,roller Wheel ,assembly				$ 3.12
NI	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NI	134930800		Harness,moisture Sensor			Immediately	$ 48.44

    View Diagram in Separate Window       Print Part List
