Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 08067934 Bracket-regulator Appelez-nous -
2 5303280582 Control-regulator Appelez-nous -
3 5303271611 Tubing Control/valve Appelez-nous -
4 3203459 Valve-safety Special Order $ 303.64

5 3131438 Bracket, Valve Appelez-nous -
6 3131439 Burner-oven Special Order $ 204.59

7 5303935066 Igniter-oven   (Replaces: 5303131300) In-Stock Immediately $ 59.58

8 5303200669 Igniter-module Appelez-nous -
9 5303208495 Tubing Regul Manifold Pipe Appelez-nous -
10 5303271375 Manifold Pipe Appelez-nous -
11 316020401 Valve-3 Pos Special Order $ 138.86

12 5303269845 Screw-valve (4) Appelez-nous -
13 316032000 Switch-igniter Special Order $ 58.70

14 5303283666 Burner-tube Lf Appelez-nous -
15 5303283668 Burner-tube Lr Appelez-nous -
16 5303283667 Burner-tube Rr Appelez-nous -
17 5303283665 Burner-tube Rf Appelez-nous -
18 3013279 Nut, Special, 4 Special Order $ 2.34

19 5303011567 Burner - Top Appelez-nous -
20 3018617 Retainer, Igniter Appelez-nous -
21 5303283573 Igniter Top Burner Appelez-nous -
22 3203265 Baffle-oven Appelez-nous -
23 3018603 Bracket, Oven Burner Support Appelez-nous -
24 154079601 Nut-baffle   (Replaces: 5303013272) Special Order $ 0.41


    View Diagram in Separate Window     Print Icon   Print Part List

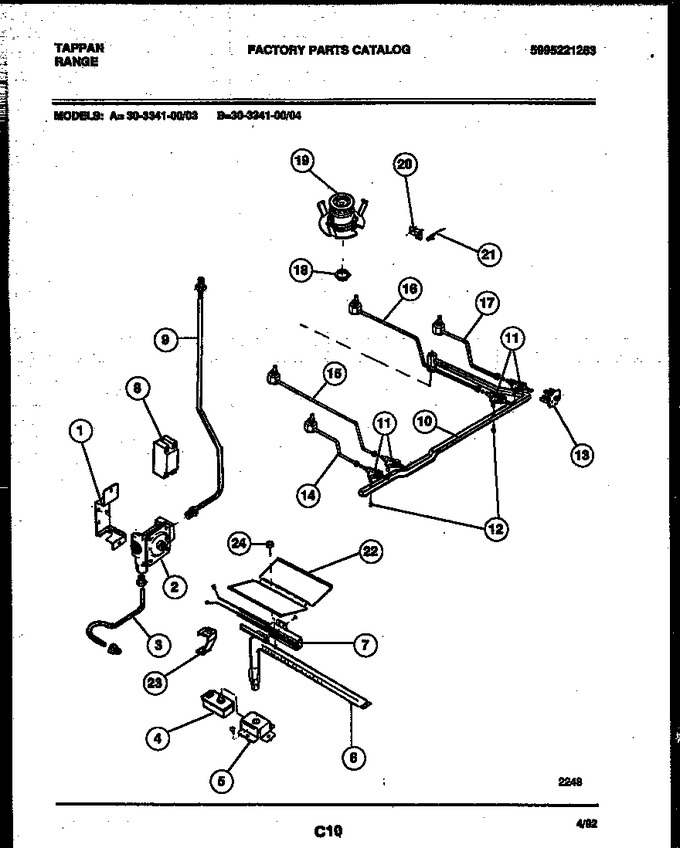

Diagram for 30-3341-00-04
