SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum

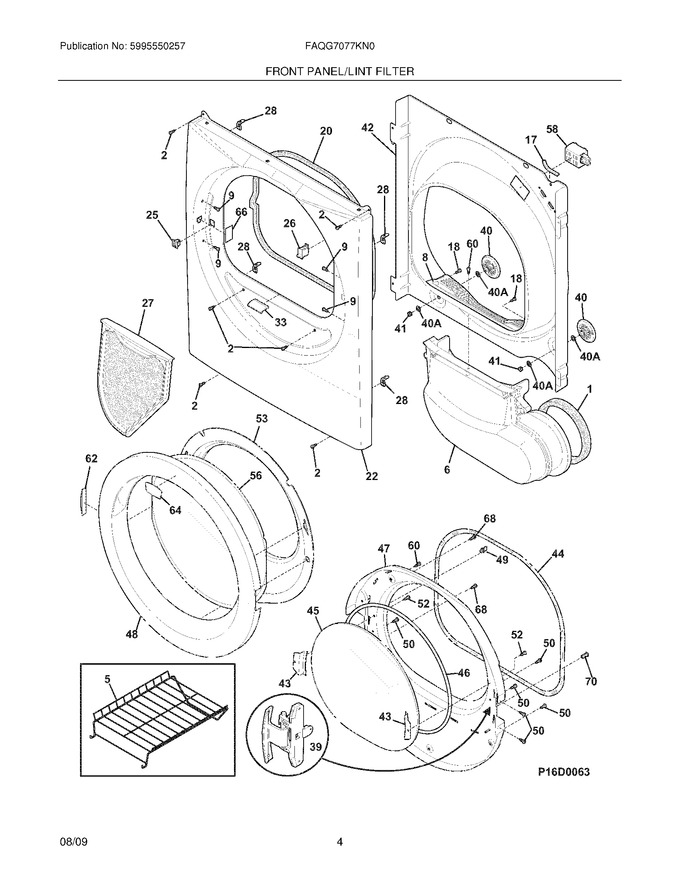

05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137068200		Seal,air Duct				$ 14.81
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
5	137067300		Rack,drying		Appelez-nous	-
6	134710705		Duct,air ,gray				$ 208.95
8	134701320		Cover,lint Housing				$ 95.21
9	131633220		Plug,gray				$ 4.39
17	134792900		Protector,edge ,right Top Front				$ 13.46
18	131168200		Screw,10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
20	137116600		Gasket,front Panel				$ 151.53
22	134696645		Panel,front ,blue				$ 248.22
25	131658800		Door Catch,gray ,upper   (Replaces: 131658820)			Immediately	$ 68.38
27	134701410		Filter,lint ,complete   (Replaces: 134701420)			Immediately	$ 74.14
28	137034500		Clip,mounting ,cabinet Front				$ 43.24
33	137067110		Ramp,gray ,door				$ 19.06
39	137105100		Hinge,door   (Replaces: 134680900)				$ 184.45
40	5304523155		Roller,wheel ,complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut,3/8-16				$ 2.98
42	134696105		Bulkhead,panel ,front				$ 227.17
43	134559300		Bracket,door Glass				$ 11.34
44	137553402		Gasket,door Seal ,gray   (Replaces: 134720902)				$ 87.12
45	134611800		Glass,inner Door		Appelez-nous	-
46	134580300		Gasket,door Glass ,inner				$ 66.51
47	134683941		Panel,inner Door ,gray				$ 149.68
48	134854300		Panel,outer Door ,chrome				$ 309.70
49	5303207102		Door Strike   (Replaces: 5303211430)			Immediately	$ 19.85
50	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
52	131243700		Screw,indt Pan Head ,8-18ab X 0.375   (Replaces: 134529600)				$ 3.36
53	134558600		Ring,door Transition		Appelez-nous	-
56	137577700		Glass,outer Door Lens   (Replaces: 134550600)				$ 224.84
60	134430300		Screw,indt Pan Head ,10-14 X 0.625 ,quadrex			Immediately	$ 14.89
62	134680760		Plug,hinge Cutout ,natural				$ 45.05
64	137166825		Nameplate,affinity				$ 88.99
66	137577200		T-plug,hinge Hole   (Replaces: 134680820)				$ 5.79
68	134742002		Plug,hinge Hole ,grey				$ 15.60
70	134417502		Plug,rectangular				$ 19.74
40A	134716700		Washer,flat				$ 2.12
F26	134813661		Switch,door ,rectangle ,gray				$ 18.76
F58	131843500		Lamp Assy,drum Light ,w/mtg Bracket				$ 73.00
FNI	131843500		Lamp   (Replaces: 131862800)				$ 73.00
NI	134716200		Retainer,roller Wheel ,assembly				$ 3.12
NI	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NI	134910300		Harness,wire ,door Switch				$ 21.16
NI	134554500		Pad,outer Door				$ 14.60

    View Diagram in Separate Window       Print Part List
