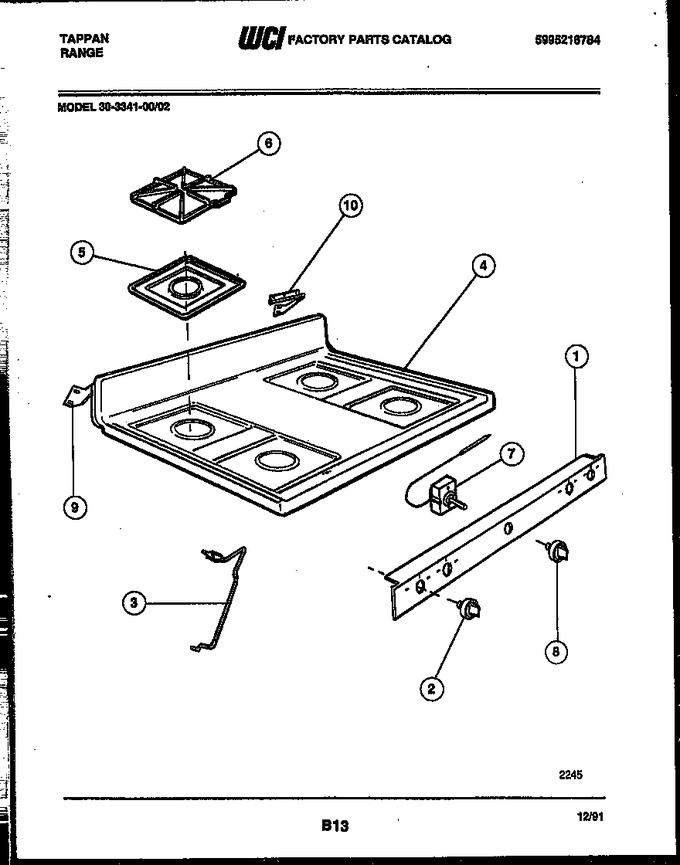

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303273109 | Panel-manifold |
|
- | |||||
| 2 | 5303209616 | Knob-top Valve-3 Pos |
|
- | |||||
| 3 | 5303271609 | Rod-top Support |
|
- | |||||
| 4 | 5303934078 | Main Top, Almond |
|
- | |||||
| 5 | 3131299 | Pan-burner (4) |
|
- | |||||
| 6 | 5303272852 | Grate, (4) |
|
$ 171.05 | |||||
| 7 | 316032411 | Thermostat (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 8 | 3205115 | Knob, Thermostat |
|
- | |||||
| 9 | 5303273063 | Hinge Assy-lh-main Top |
|
$ 48.41 | |||||
| 10 | 5303273062 | Hinge Assy-rh-main Top |
|
- | |||||
| 8A | 3206266 | Retainer-wire (non-illustrated) |
|
- |
