View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Cabinet Front And Wrapper
05 - Controls
07 - Air Handling Parts
09 - Compressor Parts
11 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

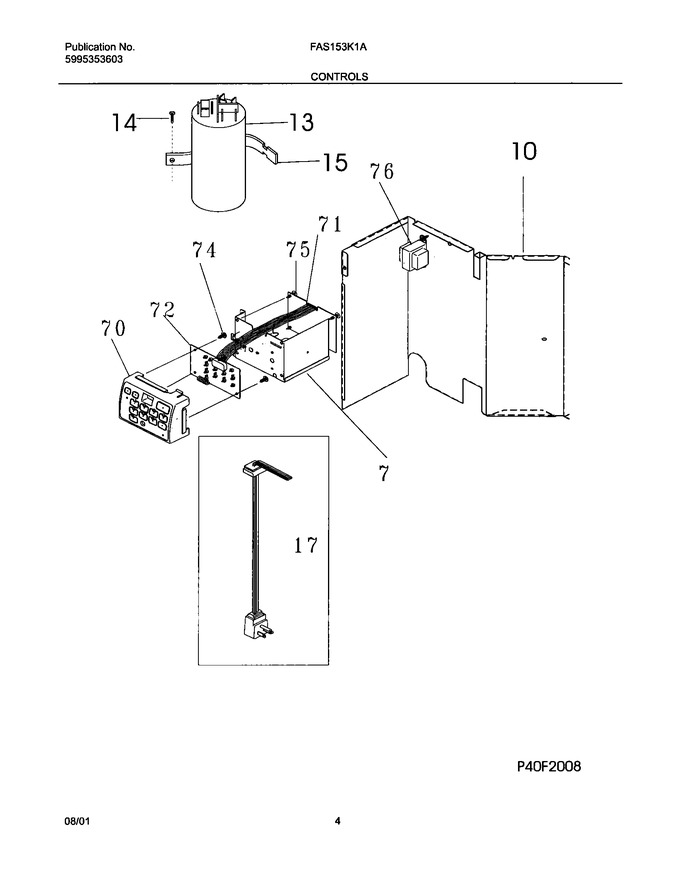

| 7 | 309630403 | Control Box |
|
- | |||||
| 10 | 309623601 | Bulkhead,control System |
|
- | |||||
| 12 | 5304413782 | Holder-thermistor,assy With Seal |
|
- | |||||
| 14 | 5303015427 | Screw,truss Head ,8-18ab X 0.47 |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 17 | 309343111 | Cord-electric Power,type A ,14 Awg |
|
- | |||||
| 70 | 309342401 | Enclosure,elec Control Mt |
|
- | |||||
| 71 | 309350401 | Pc Board,power,sagem |
|
- | |||||
| 72 | 309350403 | Board-input,sagem Hd |
|
$ 170.67 | |||||
| 74 | 3201861 | Screw-bracket (Replaces: 5303301590) |
|
$ 0.76 | |||||
| 75 | 5304413781 | Support-pc Board |
|
- | |||||
| 76 | 309111601 | Transformer,120/12 Volt |
|
- | |||||
| F13 | 5303318963 | Capacitor,370 V |
|
- | |||||
| F16 | 5304408752 | Wiring Harness |
|
- | |||||
| NI | 5304417643 | Ribbon Protector |
|
- | |||||
| NI | 5304414108 | Holder-thermistor,without Seal |
|
- |
