SELECT A DIAGRAM

01 - Cover


02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts

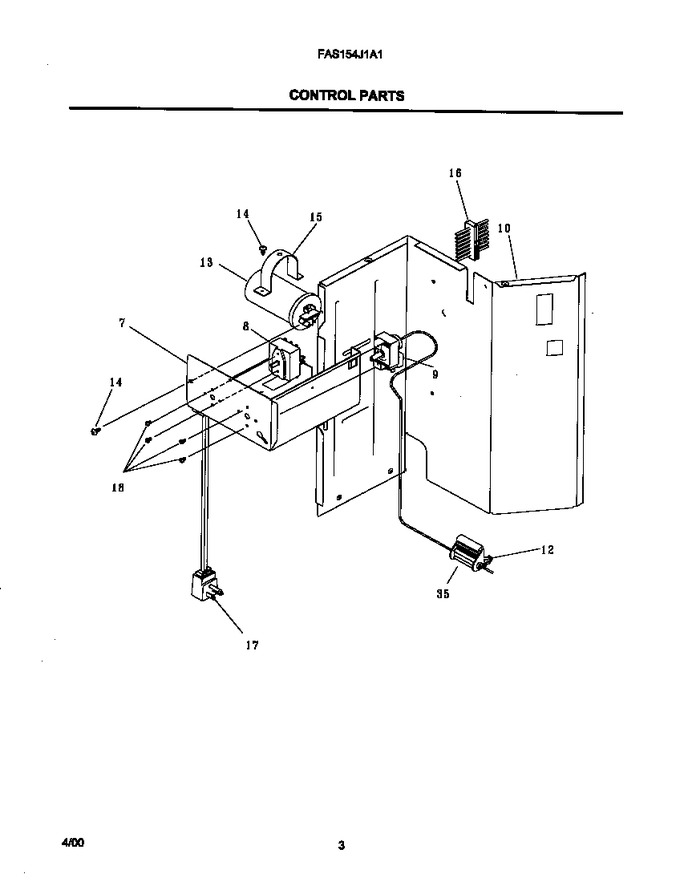

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309630401		Control Box		Appelez-nous	-
8	5303323284		Switch-selector		Appelez-nous	-
9	5304408295		Control-temperature,20 Amp		Appelez-nous	-
10	309623601		Bulkhead,control System		Appelez-nous	-
12	309331801		Clip-control Bulb,(2)		Appelez-nous	-
13	5303318963		Capacitor,370 V		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
15	5303303077		Strap - Capacitor		Appelez-nous	-
16	5304408752		Harness-3s;hdtc;sanyo;14awg		Appelez-nous	-
17	309343111		Cord-srv Type-a 14awg		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
35	3200761		Spacer - Control Bulb		Appelez-nous	-
38	5308009156		Screw,10-16ab X 0.500 , Motor Drive		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
