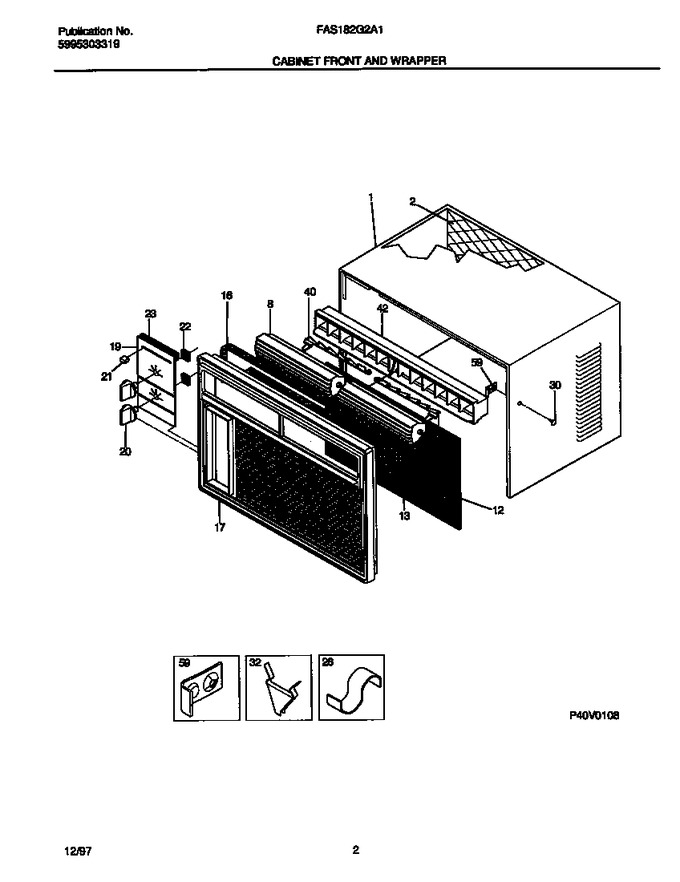

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303545		Wrapper		Appelez-nous	-
2	5303210207		Grill,rear		Appelez-nous	-
8	5303299967		Louver,(2)		Appelez-nous	-
12	5303014139		Filter		Appelez-nous	-
13	08017353		Seal - Mullion		Appelez-nous	-
16	08017132		Seal		Appelez-nous	-
17	309611905		Front,cabinet ,complete		Appelez-nous	-
19	309624402		Dial Plate		Appelez-nous	-
20	5304402843		Knob-control,(2)		Appelez-nous	-
21	5304402841		Knob-slide		Appelez-nous	-
22	5303001775		Spacer, Plate		Appelez-nous	-
23	5303001984		Seal, Plate		Appelez-nous	-
28	5308010914		Clip-front To Base		Appelez-nous	-
30	134178901		Screw,truss Head ,8-18 X 0.625 ,front ,(2),square Drive   (Replaces: 5303293767)				$ 14.89
32	5303001844		Clip-link, (2)		Appelez-nous	-
39	5303271346		Screw, Truss Head, 8-18ab X 0.75		Appelez-nous	-
40	309321803		Link-louver, Lh		Appelez-nous	-
41	309321804		Link-louver,rh		Appelez-nous	-
42	5303002459		Louvers W/ Link		Appelez-nous	-
59	08010928		Nut - Front Lock		Appelez-nous	-
*29280	5303212504		Seal-bottom		Appelez-nous	-
