01 - Cover
02 - Cabinet Front/wrapper
03 - Control Parts

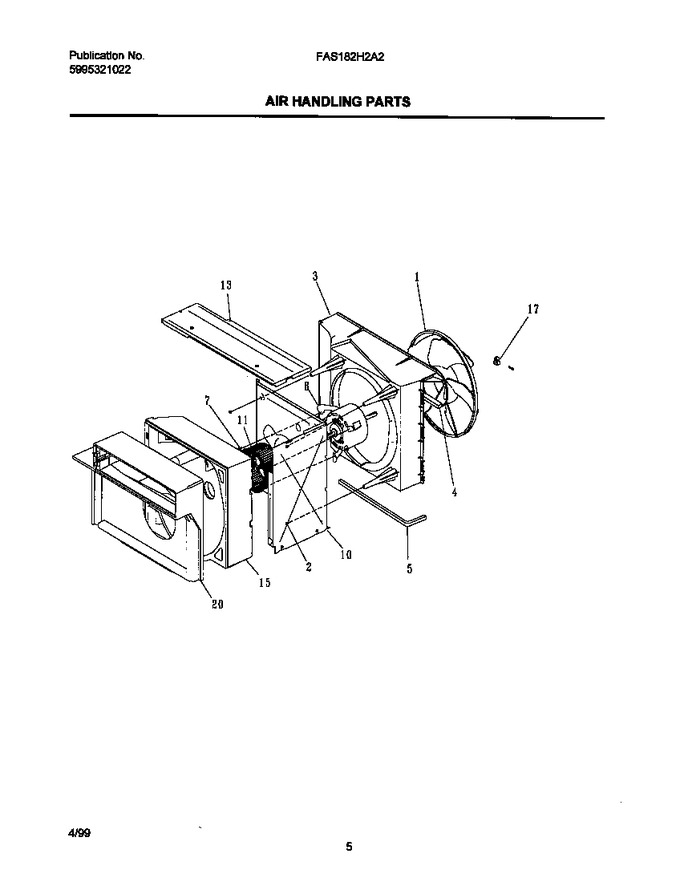

04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303321440 | Fan Blade & Clamp |
|
- | |||||
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 5303015305 | Housing-fan, Upper |
|
- | |||||
| 4 | 3016696 | Seal,housing-fan ,upper |
|
- | |||||
| 5 | 5303015311 | Seal,housing-fan ,lower |
|
- | |||||
| 6 | 5303015304 | Housing-fan,lower |
|
- | |||||
| 7 | 5303015427 | Screw,truss Head ,8-18ab X 0.47 |
|
- | |||||
| 8 | 5304408298 | Motor-fan Ge 3sp 230/60 48fr |
|
- | |||||
| 9 | 5303015306 | Bracket |
|
- | |||||
| 10 | 309623401 | Bulkhead-air Side Hd T/a; T/c |
|
- | |||||
| 11 | 309633001 | Blower Whl& Clamp Asy-plastic |
|
- | |||||
| 13 | 309630301 | Cover-top Hdta/tc |
|
- | |||||
| 15 | 309630101 | Scroll-evap Cool Only Hdt/c |
|
- | |||||
| 18 | 5303007754 | Screw, .138-32 X .188 |
|
- | |||||
| 20 | 309630201 | Plate-scroll Hdtc/ta |
|
- |
