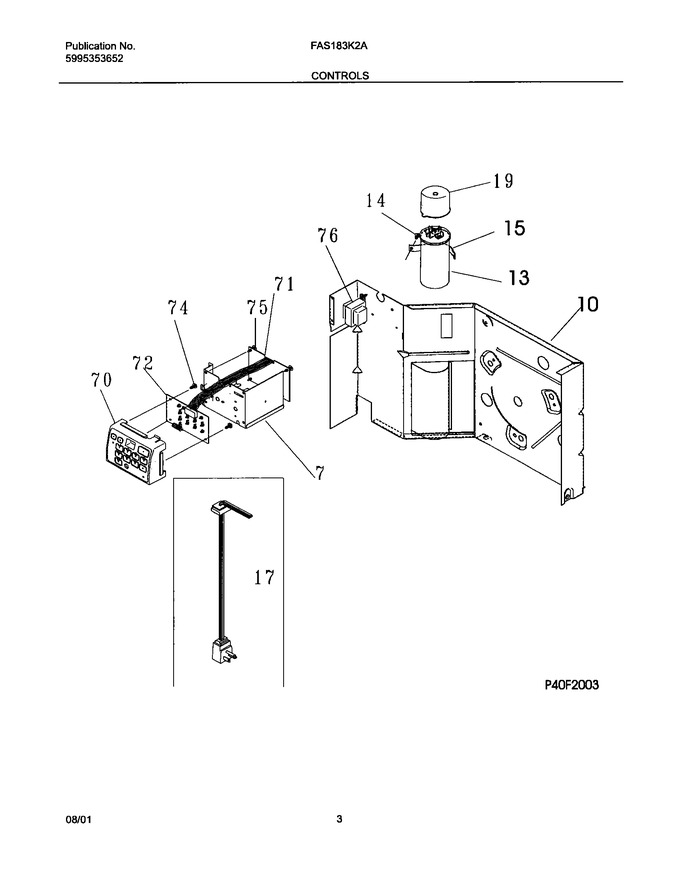

05 - Controls


07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309630401		Control Box		Appelez-nous	-
10	309623601		Bulkhead,control System		Appelez-nous	-
14	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
15	5303303077		Strap - Capacitor		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
35	3200761		Spacer - Control Bulb		Appelez-nous	-
F13	5303317228		Capacitor,370 V ,30+6		Appelez-nous	-
F16	5304408751		Wiring Harness		Appelez-nous	-
F17	309343112		Cord-service,type C 16awg		Appelez-nous	-
F8	5303323284		Switch-selector		Appelez-nous	-
F9	5304408295		Control-temperature,20 Amp		Appelez-nous	-
