SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

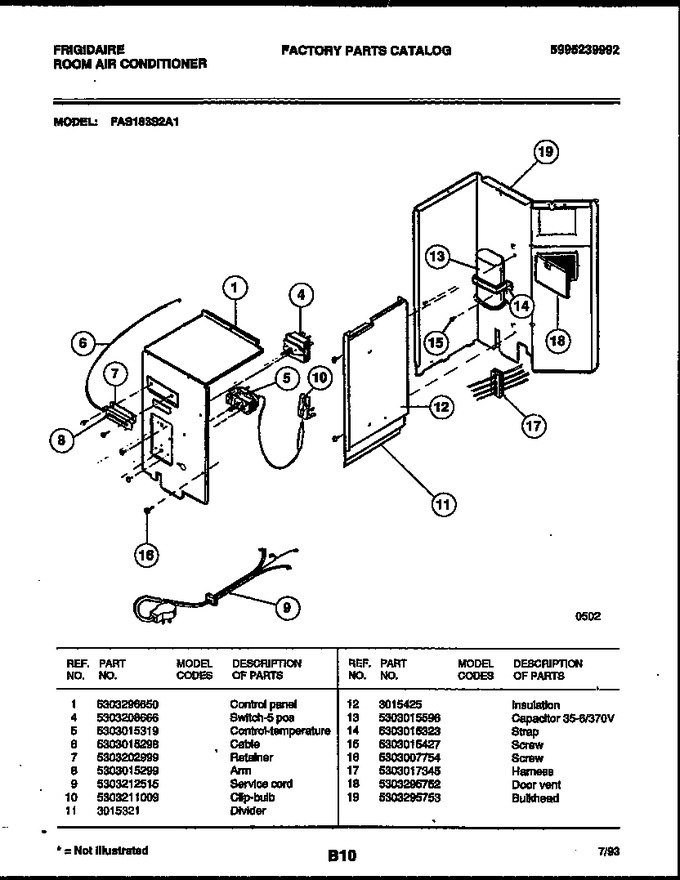

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303296650 | Control Panel |
|
- | |||||
| 4 | 5303208666 | Switch-5 Pos |
|
- | |||||
| 5 | 5303015319 | Control - Temperature |
|
- | |||||
| 6 | 5303015298 | Cable |
|
- | |||||
| 7 | 5303202999 | Retainer |
|
- | |||||
| 8 | 5303015299 | Arm |
|
- | |||||
| 9 | 5303212515 | Service Cord |
|
- | |||||
| 10 | 5303211009 | Clip-bulb |
|
- | |||||
| 11 | 3015321 | Divider |
|
- | |||||
| 12 | 3015425 | Insulation |
|
- | |||||
| 13 | 5303015596 | Capacitor 35-6/370v |
|
- | |||||
| 14 | 5303015323 | Strap |
|
- | |||||
| 15 | 5303015427 | Screw |
|
- | |||||
| 16 | 5303007754 | Screw |
|
- | |||||
| 17 | 5303017345 | Harness |
|
- | |||||
| 18 | 5303295752 | Door-vent |
|
- | |||||
| 19 | 5303295753 | Bulkhead |
|
- |
