01 - Cover

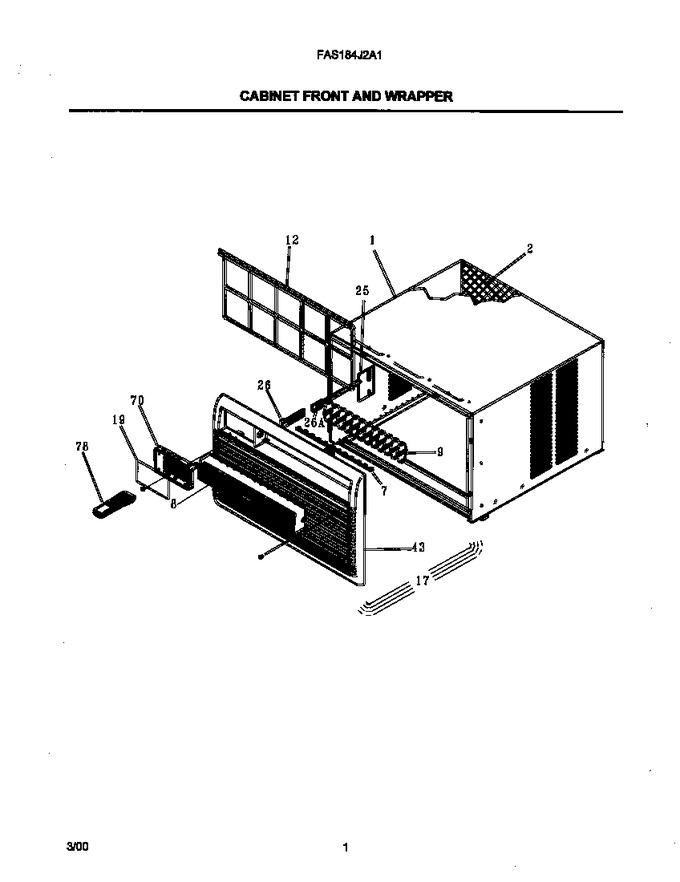

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309632704 | Slv-seal Assy Domestic |
|
- | |||||
| 2 | 309632804 | Grill&rr Rail Asm-hdtc |
|
- | |||||
| 7 | 309631104 | Link-handle |
|
- | |||||
| 8 | 309630804 | Louver,horizontal |
|
- | |||||
| 9 | 309631004 | Louver |
|
- | |||||
| 12 | 309631404 | Filter-molded |
|
- | |||||
| 17 | 309633205 | Front Assy-fac 1403 |
|
- | |||||
| 19 | 309341003 | Overlay Hdtc Fac No Gallery |
|
- | |||||
| 21 | 5303212504 | Seal-bottom |
|
- | |||||
| 25 | 309321401 | Door-vent,actuator |
|
- | |||||
| 26 | 309330206 | Detent Assy Hot Melt |
|
- | |||||
| 26 | 309330404 | Handle-vent Barclna (1403) |
|
- | |||||
| 29 | 134178901 | Screw,truss Head ,8-18 X 0.625 ,front ,(2),square Drive (Replaces: 5303293767) |
|
$ 14.89 | |||||
| 43 | 309630904 | Frame-frnt Hdtc Brcln |
|
- | |||||
| 70 | 309330202 | Detent-vent |
|
- | |||||
| 70 | 309342401 | Encloure-hdtc Brands |
|
- | |||||
| 78 | 309350502 | Pkg-jy-tai Trans W/batteries |
|
$ 108.26 | |||||
| 78 | 309342604 | Remote-cntrl Pkg Ge;fac N/gry |
|
- | |||||
| *42000 | 309633305 | Louver Assy,horizontal |
|
- |
