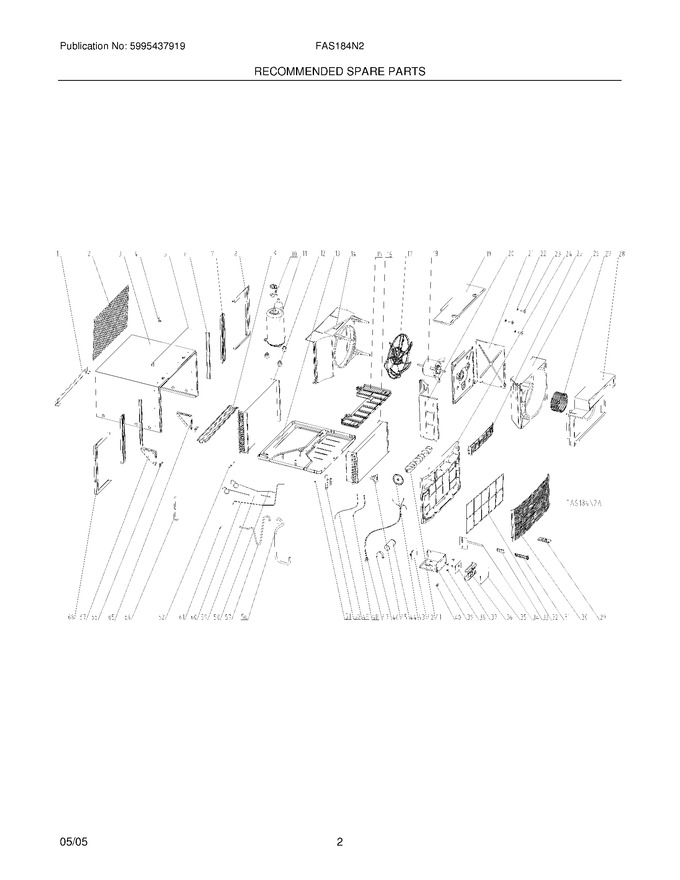

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304414097 | Rail,cabinet Bottom ,rear |
|
- | |||||
| 2 | 5304408741 | Grille,rear Panel ,aluminum |
|
- | |||||
| 3 | 309623906 | Cabinet,wrapper/sleeve |
|
- | |||||
| 4 | 5303211056 | Bracket-sash Lock |
|
- | |||||
| 5 | 5304414116 | Rail,cabinet Top ,front |
|
- | |||||
| 6 | 5304414933 | Retainer,shutter Mount ,cabinet Side |
|
- | |||||
| 7 | 309645602 | Shutter,accordion Panel ,rh/lh ,window Closure |
|
- | |||||
| 8 | 5304414929 | Frame,shutter ,gray ,rh ,extension |
|
- | |||||
| 9 | 5304416310 | Rail,cabinet Bottom ,front |
|
- | |||||
| 13 | 309632910 | Base,compressor Mtg. ,with Studs |
|
- | |||||
| 14 | 309623201 | Shroud,cond Fan Motor |
|
$ 99.33 | |||||
| 15 | 309623501 | Tray,evap Drip |
|
- | |||||
| 19 | 309630302 | Cover,blower Wheel ,top |
|
- | |||||
| 20 | 309623602 | Bulkhead,control System |
|
- | |||||
| 21 | 309623403 | Bulkhead,air System |
|
- | |||||
| 22 | 5300105402 | Grommet-motor, (3) |
|
- | |||||
| 23 | 5303317224 | Screw,indt Hex Head ,10-16 ,(3) |
|
- | |||||
| 24 | 309900101 | Frame,cabinet Front |
|
$ 75.55 | |||||
| 25 | 309900301 | Louver,horizontal |
|
$ 44.52 | |||||
| 26 | 309630101 | Housing,blower Scroll |
|
- | |||||
| 28 | 309630203 | Plate,scroll Cover |
|
- | |||||
| 30 | 309900201 | Panel,front Grille |
|
$ 98.39 | |||||
| 31 | 309900601 | Handle,vent Opener |
|
- | |||||
| 32 | 309639001 | Filter,micro-biologic ,framed |
|
- | |||||
| 33 | 309902801 | Detent,vent Handle |
|
- | |||||
| 34 | 309321402 | Door,vent ,with Actuator |
|
- | |||||
| 35 | 309901702 | Overlay,control Display |
|
- | |||||
| 36 | 309900501 | Enclosure,input Pcb ,control Panel |
|
- | |||||
| 38 | 5304413781 | Hardware,pcb Support |
|
- | |||||
| 39 | 309630404 | Control Box |
|
- | |||||
| 40 | 309111201 | Grommet,wire Protector |
|
- | |||||
| 41 | 309904601 | Louver,vertical |
|
$ 29.30 | |||||
| 43 | 309900401 | Wheel,louver Adjuster |
|
- | |||||
| 45 | 5304414108 | Holder,thermistor Clip ,5/16`` |
|
- | |||||
| 46 | 5303303077 | Strap,capacitor Mtg. |
|
- | |||||
| 51 | 5303302254 | Nut,expansion Type |
|
- | |||||
| 65 | 5304414105 | Bracket,cab Support ,rh |
|
- | |||||
| 66 | 3001815 | Support,angle Bracket ,window Sill Mt. |
|
- | |||||
| 67 | 5304414106 | Bracket,cab Support ,lh |
|
- | |||||
| 68 | 5304414928 | Frame,shutter ,gray ,lh ,extension |
|
- | |||||
| F10 | 5304414111 | Overload Protector |
|
- | |||||
| F11 | 309603113 | Compressor |
|
- | |||||
| F12 | 5303208581 | Condenser |
|
- | |||||
| F16 | 309634103 | Evaporator |
|
- | |||||
| F17 | 5303311048 | Fan Blade,with Clamp |
|
- | |||||
| F18 | 309630613 | Motor,fan ,1 Speed |
|
$ 182.70 | |||||
| F27 | 309633001 | Blower Wheel,plastic ,with Clamp |
|
- | |||||
| F29 | 309902202 | Remote Control,transmitter |
|
- | |||||
| F37 | 309901601 | Pc Board,input/display |
|
$ 31.29 | |||||
| F42 | 309901501 | Pc Board,power ,230 V ,variable Speed |
|
- | |||||
| F44 | 5304427210 | Capacitor,440 Vac ,25+6 Microfarad |
|
- | |||||
| F47 | 309343112 | Power Cord,electric ,16 Awg ,230 V ,type C |
|
- | |||||
| F48 | 309201602 | Sensor,thermistor ,ambient Temp |
|
$ 39.06 | |||||
| F49 | 309201603 | Sensor,thermistor ,evap Defrost |
|
$ 33.39 | |||||
| F50 | 309330502 | Manifold Assembly,with Rings |
|
- | |||||
| F56 | 309371801 | Tube,suction ,copper |
|
- | |||||
| F57 | 309371701 | Tube,discharge ,copper |
|
- | |||||
| F58 | 309374301 | Tube,capillary ,copper ,top |
|
- | |||||
| F59 | 309374401 | Tube,capillary ,copper ,middle |
|
- | |||||
| F60 | 309374501 | Tube,capillary ,copper ,bottom |
|
- | |||||
| F61 | 309111001 | Fitting,reducer ,.101/.104 Id ,copper Tube |
|
- | |||||
| F62 | 5303290357 | Strainer |
|
- | |||||
| F64 | 5304417722 | Tube,process ,copper ,cond. Outlet |
|
- |
