SELECT A DIAGRAM

01 - Cover

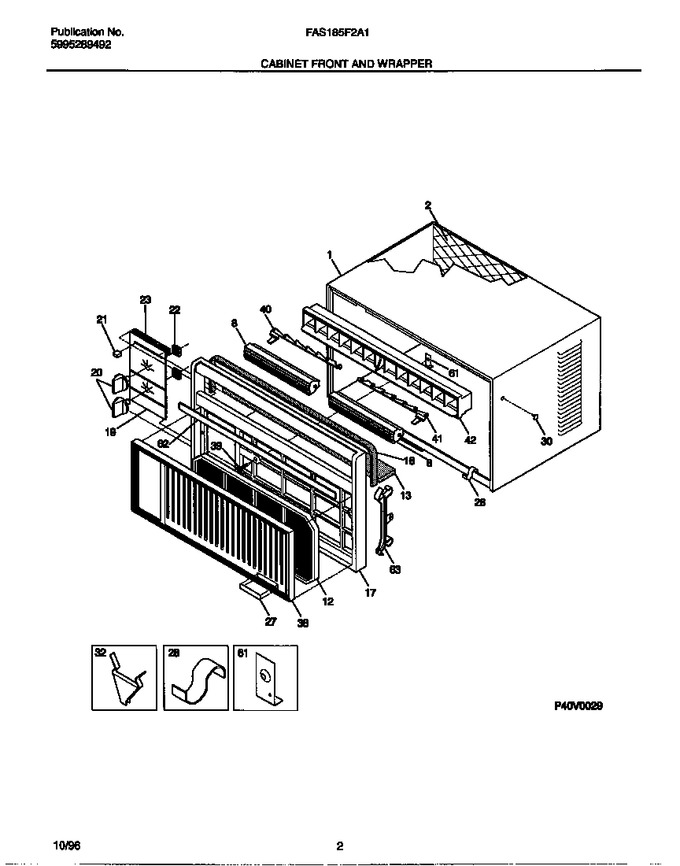

02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303545		Wrapper		Appelez-nous	-
2	5303210207		Grill,rear		Appelez-nous	-
8	5303306264		Louver		Appelez-nous	-
12	5308017190		Filter		Appelez-nous	-
13	08017353		Seal - Mullion		Appelez-nous	-
16	08017132		Seal		Appelez-nous	-
17	309611003		Front, Cabinet, Complete		Appelez-nous	-
19	309624401		Dial Plate		Appelez-nous	-
20	5303321487		Knob-control, (2)		Appelez-nous	-
21	5303321485		Knob-slide		Appelez-nous	-
22	5303001775		Spacer, Plate		Appelez-nous	-
23	5303001984		Seal, Plate		Appelez-nous	-
27	309100902		Nameplate		Appelez-nous	-
28	5308010914		Clip-front To Base		Appelez-nous	-
30	08016091		Plug		Appelez-nous	-
32	5303001844		Clip-link, (2)		Appelez-nous	-
38	5303306266		Panel-front		Appelez-nous	-
39	134178901		Screw, Truss Head, 8-18 X 0.625, Front, (2), Square Driv   (Replaces: 5303293767)				$ 14.89
40	309321803		Link-louver, Rh		Appelez-nous	-
41	309321804		Link-louver, Lh		Appelez-nous	-
42	5303002459		Louvers W/ Link		Appelez-nous	-
61	5303016223		Bracket-front		Appelez-nous	-
62	5303306269		Insert-mullion		Appelez-nous	-
63	5308017138		Track-filter (2)		Appelez-nous	-
*62240	5303212504		Seal-bottom		Appelez-nous	-
