SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front And Wrapper

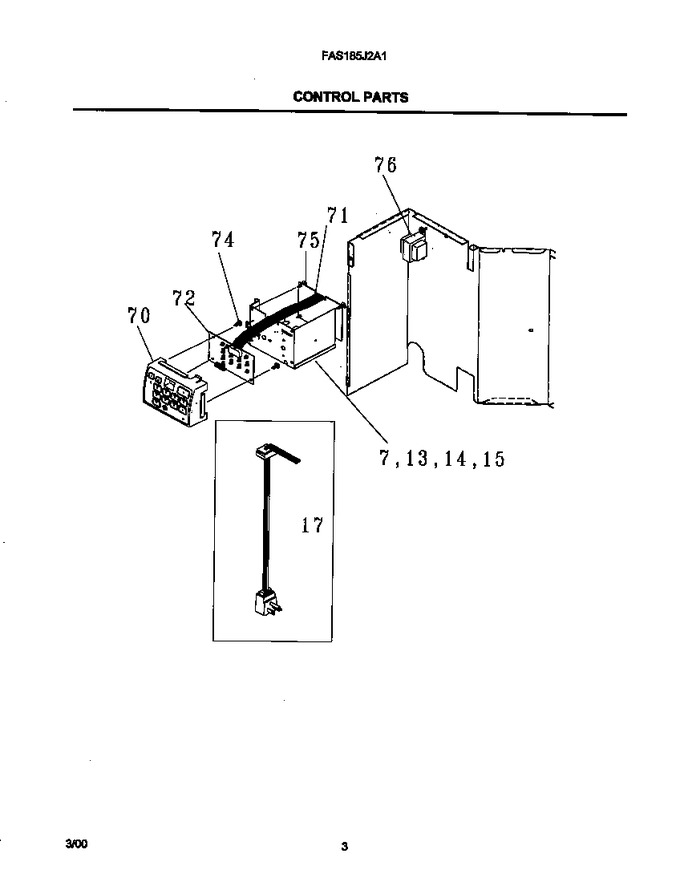

03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309630403 | Box-control Hdtc Elec.control |
|
- | |||||
| 10 | 309623601 | Bulkhead,control System |
|
- | |||||
| 12 | 5304414108 | Thermistor Holder |
|
- | |||||
| 13 | 5303317228 | Capacitor,370 V ,30+6 |
|
- | |||||
| 14 | 5303303691 | Screw,truss Head `8-18ab X 0.375 ,w/nibs |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 16 | 5304408751 | Wiring Harness |
|
- | |||||
| 17 | 309343112 | Cord-srv Type-c 16awg |
|
- | |||||
| 71 | 309340503 | Power Board |
|
- | |||||
| 72 | 309340701 | +input-board Hdtc Srs |
|
- | |||||
| 74 | 3201861 | Screw-bracket (Replaces: 5303301590) |
|
$ 0.76 | |||||
| 75 | 5304413781 | Pc Board-support Hardware |
|
- | |||||
| 76 | 309111602 | Transformer 230/volts |
|
- | |||||
| *93321 | 5304413782 | Thermistor Holder Assy |
|
- |
