View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Wrapper/cabinet Front
05 - Controls
07 - Air Handling Parts
09 - Compressor Parts
11 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

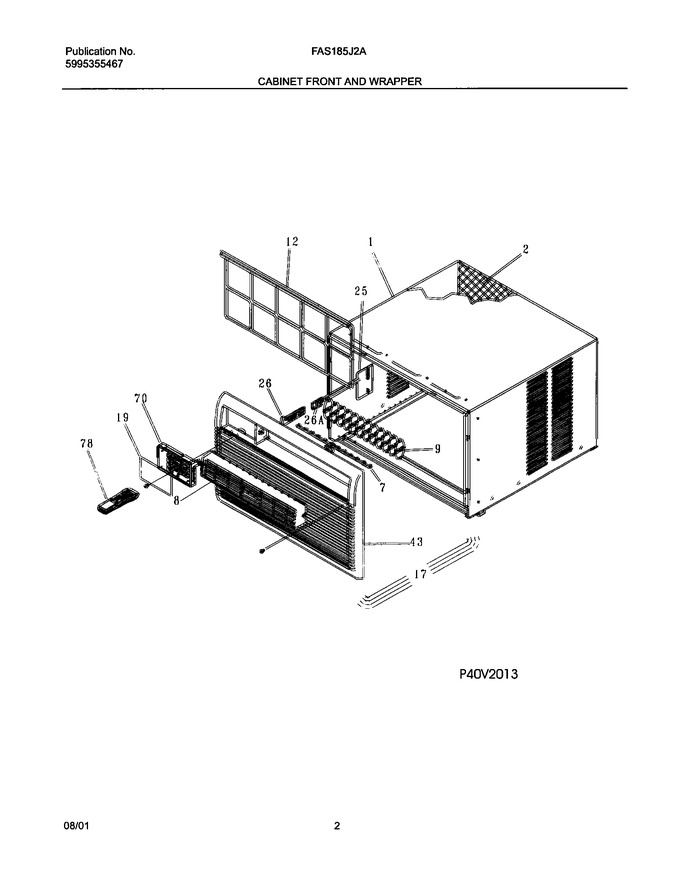

| 1 | 309632704 | Cabinet,sleeve ,top Louvers |
|
- | |||||
| 2 | 309632804 | Grille,rear ,with Rail |
|
- | |||||
| 7 | 309631104 | Link,vertical Louver |
|
- | |||||
| 8 | 309633305 | Louver Assy,horizontal |
|
- | |||||
| 9 | 309631004 | Louver |
|
- | |||||
| 12 | 309631404 | Filter-air,molded Plastic |
|
- | |||||
| 17 | 309633205 | Front-cabinet,complete Assy |
|
- | |||||
| 19 | 309341002 | Overlay,frig Gallery |
|
- | |||||
| 25 | 309321401 | Door-vent,actuator |
|
- | |||||
| 26 | 309330404 | Handle-vent,gray |
|
- | |||||
| 26 | 309330206 | Detent Assy-vent,with Adhesive |
|
- | |||||
| 43 | 309630904 | Panel,cabinet Front |
|
- | |||||
| 70 | 309342401 | Enclosure,elec Control Mt |
|
- | |||||
| 78 | 309350502 | Remote Control,transmitter ,with Batteries |
|
$ 108.26 | |||||
| 26A | 309330202 | Detent-vent |
|
- |
