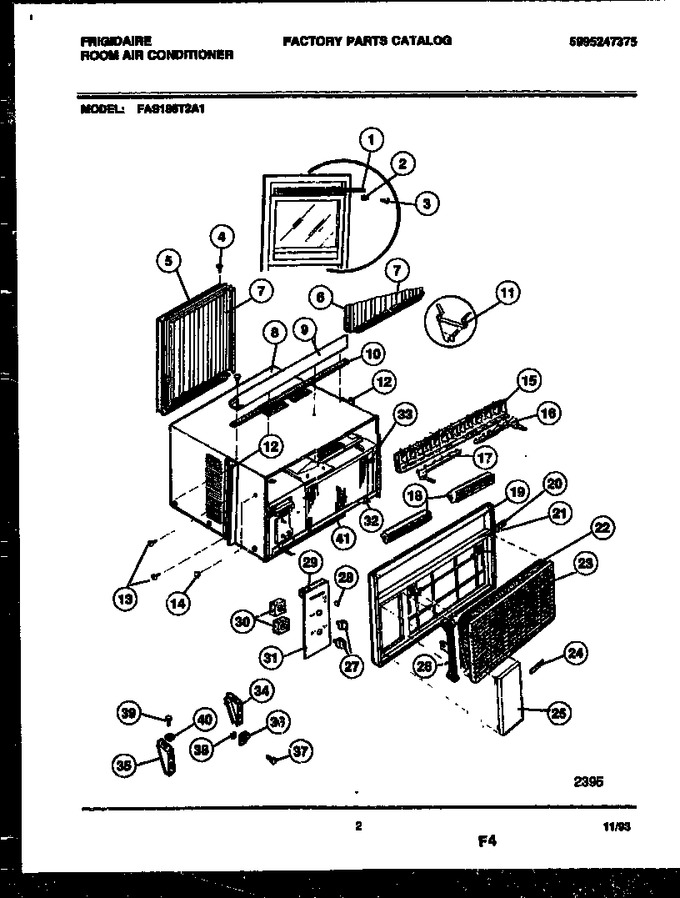

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303002608 | Seal - Window |
|
- | |||||
| 2 | 5303211056 | Bracket |
|
- | |||||
| 3 | 3002803 | Screw |
|
- | |||||
| 4 | 3002801 | Screw-frame |
|
- | |||||
| 5 | 5303302304 | Frame, Lh |
|
- | |||||
| 6 | 5303302305 | Frame, Rh |
|
- | |||||
| 7 | 5303302306 | Accordian Closure |
|
- | |||||
| 8 | 5303301790 | Wrapper |
|
- | |||||
| 9 | 530301777 | Rail-top |
|
- | |||||
| 10 | 3001980 | Seal Rail |
|
- | |||||
| 11 | 5303001844 | Clip |
|
- | |||||
| 12 | 3202498 | Retainer |
|
- | |||||
| 13 | 08012680 | Screw |
|
- | |||||
| 14 | 5303271902 | Plug Btn |
|
- | |||||
| 15 | 5303002459 | Louver W/link |
|
- | |||||
| 16 | 5303002162 | Link-rh |
|
- | |||||
| 17 | 5303002163 | Link-lh |
|
- | |||||
| 18 | 5308017160 | Louver |
|
- | |||||
| 19 | 3205525 | Front - Complete |
|
- | |||||
| 20 | 08017353 | Seal - Mullion |
|
- | |||||
| 21 | 5308008175 | Screw-front |
|
- | |||||
| 22 | 5308017190 | Filter |
|
- | |||||
| 23 | 5303200420 | Panel-front |
|
- | |||||
| 24 | 309100901 | Nameplate |
|
- | |||||
| 25 | 5308016196 | Door |
|
- | |||||
| 26 | 5308017138 | Track-filter |
|
- | |||||
| 27 | 5308016109 | Knob-control |
|
- | |||||
| 28 | 5303002189 | Knob-slide |
|
- | |||||
| 29 | 5303001984 | Seal |
|
- | |||||
| 30 | 5303001775 | Spacer |
|
- | |||||
| 31 | 5303284124 | Dial Plate |
|
- | |||||
| 32 | 5308010914 | Clip-front |
|
- | |||||
| 33 | 5303016223 | Bracket-front |
|
- | |||||
| 34 | 5303301254 | Bracket-rh |
|
- | |||||
| 35 | 5303301255 | Bracket-lh |
|
- | |||||
| 36 | 3001815 | Bracket (2) |
|
- | |||||
| 37 | 3007756 | Screw |
|
- | |||||
| 38 | 3007759 | Nut |
|
- | |||||
| 39 | 5303281649 | Screw (4) |
|
- | |||||
| 40 | 3017023 | Nut (4) |
|
- | |||||
| 41 | 5303212504 | Seal Chassis Btm |
|
- | |||||
| 20A | 08017132 | Seal-evap Outlet (non-illustrated) |
|
- | |||||
| 8A | 5303301510 | Grille-rear (non-illustrated) |
|
- | |||||
| 8B | 5303300131 | Name Plate |
|
- |
