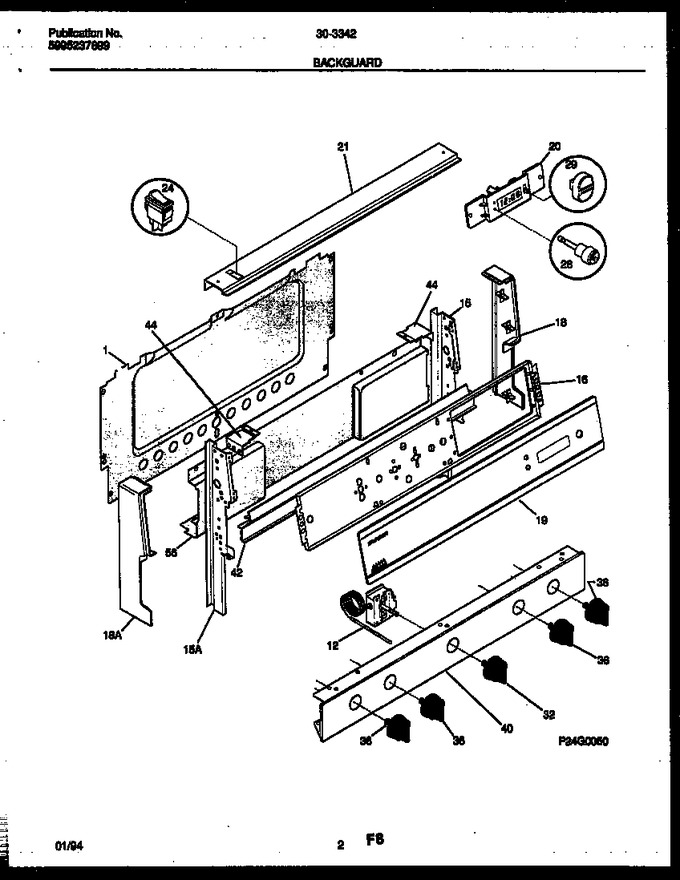

02 - Backguard


03 - Burner Parts


04 - Body Parts


05 - Cooktop And Broiler Drawer Parts


06 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	316023102		Support-backguard, Rh		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
18	316021800		End Cap, Rh				$ 81.32
19	5303273107		Panel-control, Glass		Appelez-nous	-
20	5303272309		Clock/timer, Electronic		Appelez-nous	-
21	5303283554		Trim Canopy/shield		Appelez-nous	-
24	5303208662		Switch-oven Light, Rocker		Appelez-nous	-
28	5303272306		Push Button, Clock Set, Black		Appelez-nous	-
29	5303272305		Button-selector, Clock/timer, Black				$ 38.80
32	3205115		Knob, Thermostat		Appelez-nous	-
36	5303209616		Knob-top Valve, (4)		Appelez-nous	-
40	5303273109		Panel-manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
56	316014601		Deflector-flue		Appelez-nous	-
15A	316023103		Support-backguard, Lh		Appelez-nous	-
18A	316021801		End Cap, Lh				$ 94.29
