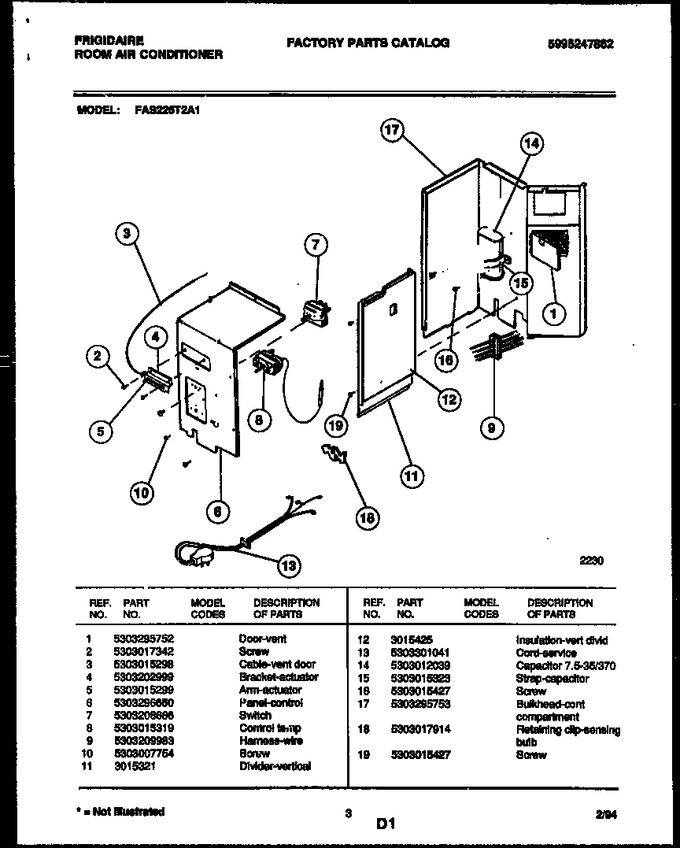

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303295752 | Door-vent |
|
- | |||||
| 2 | 5303017342 | Screw |
|
- | |||||
| 3 | 5303015298 | Cable - Vent Door |
|
- | |||||
| 4 | 5303202999 | Bracket-actuator |
|
- | |||||
| 5 | 5303015299 | Arm - Actuator |
|
- | |||||
| 6 | 5303296650 | Panel-control |
|
- | |||||
| 7 | 5303208666 | Switch |
|
- | |||||
| 8 | 5303015319 | Control Temp |
|
- | |||||
| 9 | 5303209983 | Harness-wire |
|
- | |||||
| 10 | 5303007754 | Screw |
|
- | |||||
| 11 | 3015321 | Divider - Vertical |
|
- | |||||
| 12 | 3015425 | Insulation-vert Divid |
|
- | |||||
| 13 | 5303301041 | Cord-service |
|
- | |||||
| 14 | 5303012039 | Capacitor 7.5-35/370 |
|
- | |||||
| 15 | 5303015323 | Strap-capacitor |
|
- | |||||
| 16 | 5303015427 | Screw |
|
- | |||||
| 17 | 5303295753 | Bulkhead-cont Compartment |
|
- | |||||
| 18 | 5303017914 | Retaining Clip - Sensing Bulb |
|
- | |||||
| 19 | 5303015427 | Screw |
|
- |
