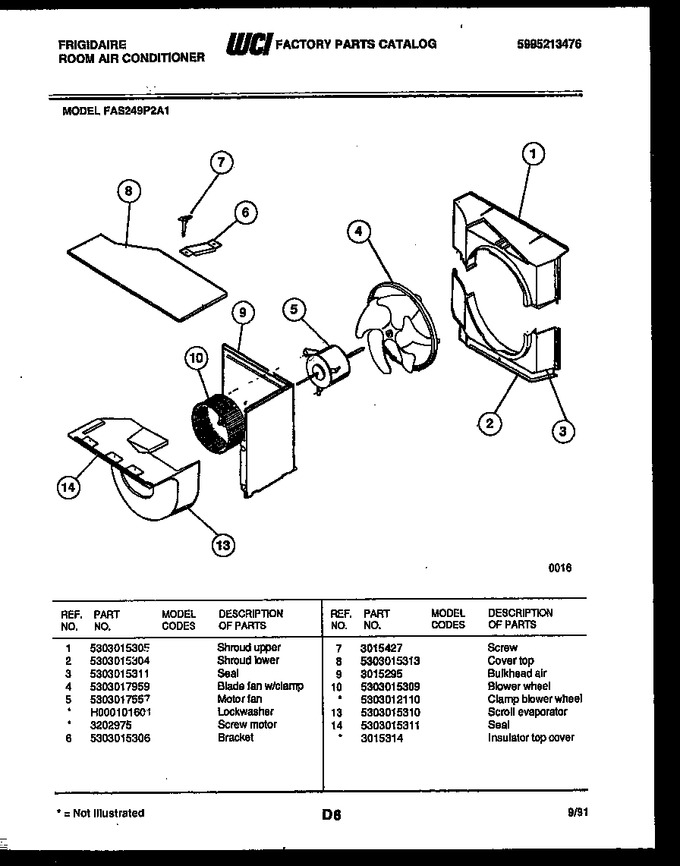

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015305 | Shroud - Upper |
|
- | |||||
| 2 | 5303015304 | Shroud - Lower |
|
- | |||||
| 3 | 5303015311 | Seal |
|
- | |||||
| 4 | 5303017959 | Blade Fan W/ Clamp |
|
- | |||||
| 5 | 5303017557 | Motor - Fan |
|
- | |||||
| 6 | 5303015306 | Bracket |
|
- | |||||
| 7 | 3015427 | Screw |
|
- | |||||
| 8 | 5303015313 | Cover - Top |
|
- | |||||
| 9 | 3015295 | Bulkhead - Air |
|
- | |||||
| 10 | 5303015309 | Blower Wheel |
|
- | |||||
| 13 | 5303015310 | Scroll-evaporator |
|
- | |||||
| 14 | 5303015311 | Seal |
|
- | |||||
| *52113 | 3015314 | Insulator Top Cover |
|
- | |||||
| 10A | 5303012110 | Clamp Blower Wheel (non-illustrated) |
|
$ 8.14 | |||||
| 5A | H000101601 | Lockwasher (non-illustrated) |
|
- | |||||
| 5B | 3202975 | Screw Motor (non-illustrated) |
|
- |
