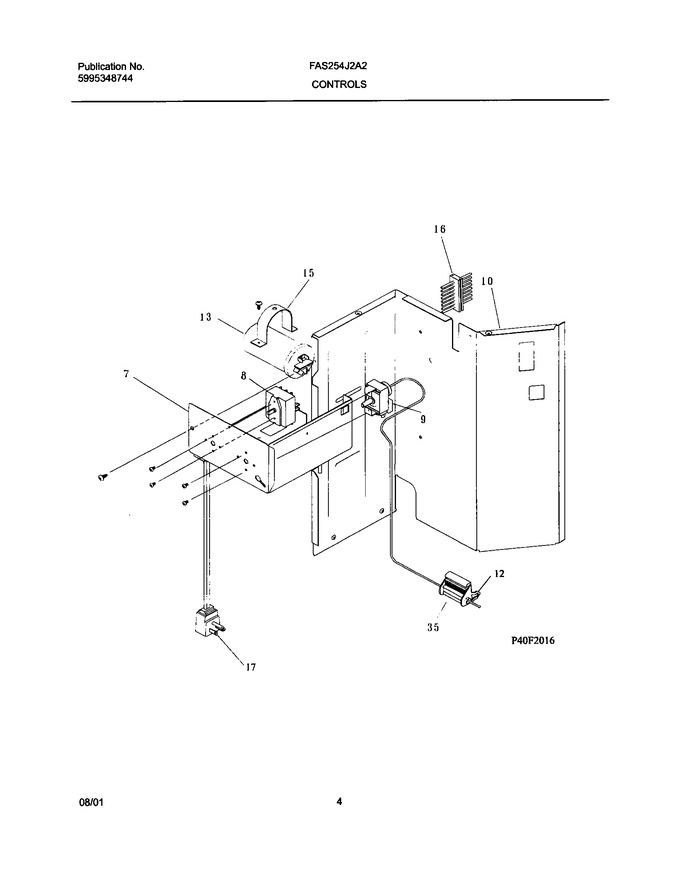

SELECT A DIAGRAM

01 - Cover


03 - Wrapper


05 - Controls


07 - Air Handling


09 - System


11 - Window Mounting


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309630401		Control Box		Appelez-nous	-
8	5304410883		Switch-selector,7 Position		Appelez-nous	-
9	5304410884		Control-temperature		Appelez-nous	-
10	309623601		Bulkhead,control System		Appelez-nous	-
15	5303303077		Strap - Capacitor		Appelez-nous	-
17	309343114		Cord-srv Type-d 12awg		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
35	3200761		Spacer - Control Bulb		Appelez-nous	-
38	5308009156		Screw,10-16ab X 0.500 , Motor Drive		Appelez-nous	-
F13	5303316594		Capacitor,370 V ,7.5x35 Mfd		Appelez-nous	-
F16	5304408753		Harness-wiring		Appelez-nous	-
NI	309331801		Clip-control Bulb,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
