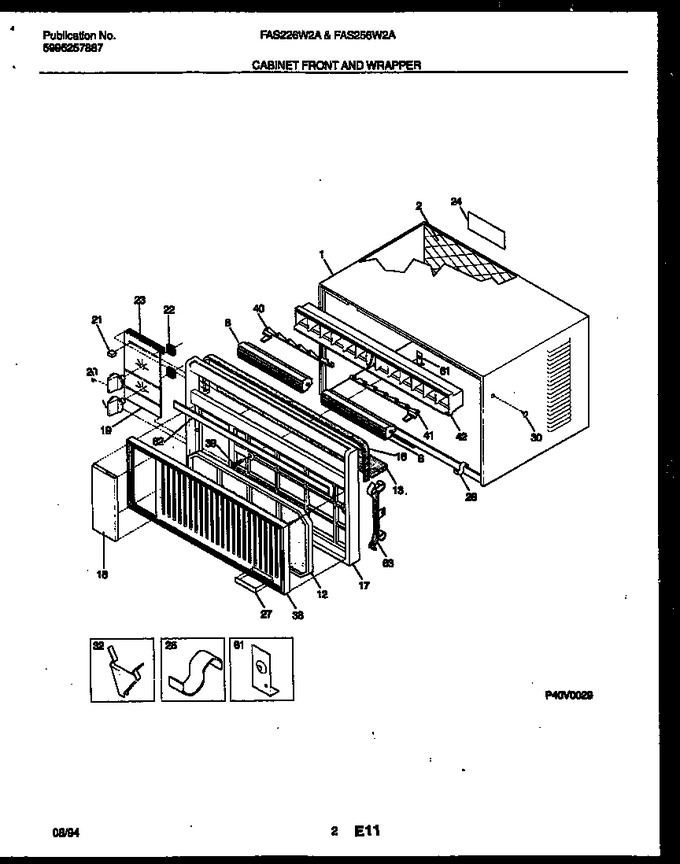

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303303545 | Wrapper |
|
- | |||||
| 2 | 5303210207 | Panel - Rear |
|
- | |||||
| 8 | 5303306264 | Louver |
|
- | |||||
| 12 | 5308017190 | Filter |
|
- | |||||
| 13 | 08017353 | Seal - Mullion |
|
- | |||||
| 16 | 08017132 | Seal |
|
- | |||||
| 17 | 309611001 | Front Complete |
|
- | |||||
| 18 | 5308016197 | Door-front |
|
- | |||||
| 19 | 5303306268 | Dial Plate |
|
- | |||||
| 20 | 5303306263 | Knob-control |
|
- | |||||
| 21 | 5303306262 | Knob-slide |
|
- | |||||
| 22 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 23 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 27 | 309100901 | Nameplate |
|
- | |||||
| 28 | 5308010914 | Clip-front/base |
|
- | |||||
| 30 | 08016091 | Plug |
|
- | |||||
| 32 | 5303001844 | Clip-link, (2) |
|
- | |||||
| 38 | 5303306266 | Panel-front |
|
- | |||||
| 39 | 134178901 | Screw,front (Replaces: 5303293767) |
|
$ 14.89 | |||||
| 40 | 5303293555 | Link-louvers, Lh |
|
- | |||||
| 41 | 5303293554 | Link-louvers, Rh |
|
- | |||||
| 42 | 5303002459 | Louvers W/ Link |
|
- | |||||
| 61 | 5303016223 | Bracket-front |
|
- | |||||
| 62 | 5303306269 | Insert-mullion |
|
- | |||||
| 63 | 5308017138 | Track-filter (2) |
|
- | |||||
| *10784 | 5303212504 | Seal - Chassis, Bottom |
|
- |
