01 - Cover
02 - Cabinet Front And Wrapper

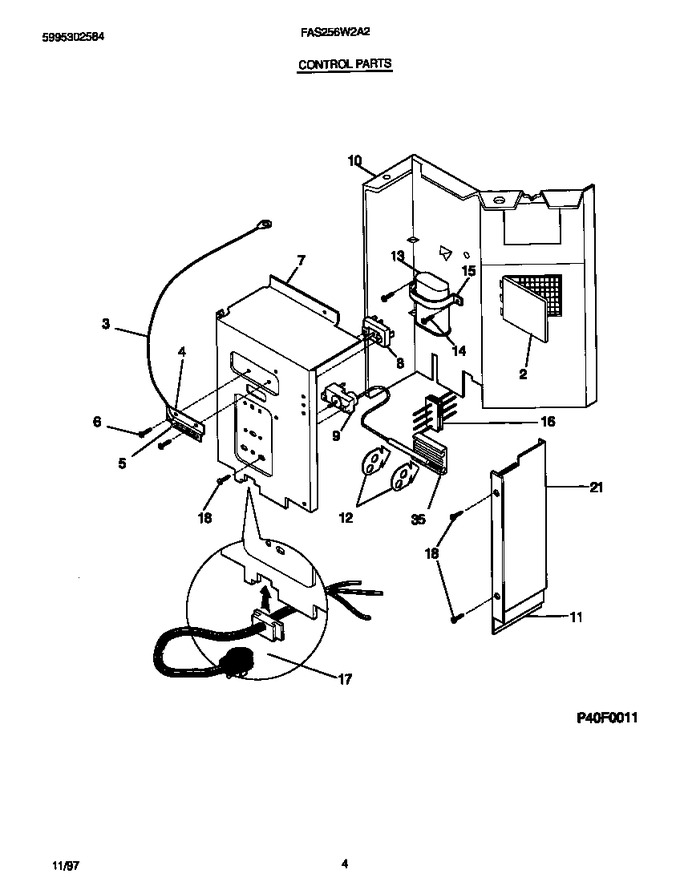

03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303295752 | Door-ventilator |
|
- | |||||
| 3 | 5303015298 | Cable-vent Control |
|
- | |||||
| 4 | 5303202999 | Retainer |
|
- | |||||
| 5 | 5303015299 | Actuator Arm |
|
- | |||||
| 6 | 5303007754 | Screw, .138-32 X .188 |
|
- | |||||
| 7 | 5303296650 | Panel-control |
|
- | |||||
| 8 | 5303201836 | Switch-selector |
|
- | |||||
| 9 | 5304402842 | Control-temperature |
|
- | |||||
| 10 | 5303295753 | Partition - Control Area |
|
- | |||||
| 11 | 5303017807 | Divider - Vertical |
|
- | |||||
| 12 | 5303017914 | Clip-control Bulb,(2) |
|
- | |||||
| 13 | 5303303576 | Capacitor, 370 V, 10+35 Mfd |
|
- | |||||
| 14 | 5303015427 | Screw,truss Head ,8-18ab X 0.47 |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 16 | 3202717 | Wiring Harness |
|
- | |||||
| 17 | 5303301041 | Cord - Electric Power |
|
- | |||||
| 18 | 3015312 | Screw, 8-18 X 0.47 |
|
- | |||||
| 21 | 5303303011 | Insulation - Divider |
|
- | |||||
| 35 | 3200761 | Spacer - Control Bulb |
|
- |
