SELECT A DIAGRAM

01 - Control Panel (bdb420-1)


02 - Control Panel (bdc520-1)


03 - Detergent Cup

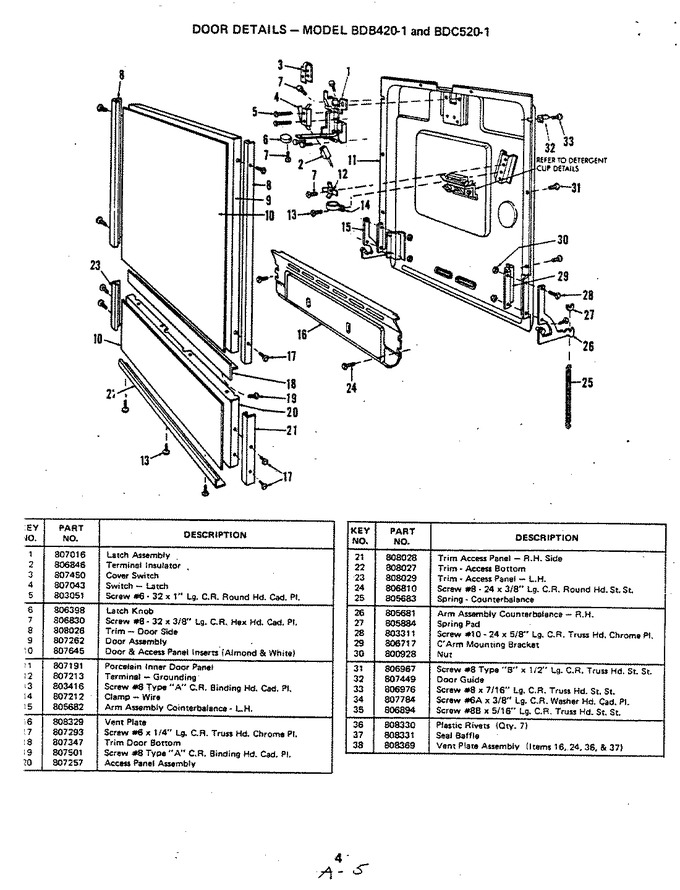

04 - Door Details


05 - Frame Details


06 - Motor, Heater & Spray Arm (bdc520-1)


07 - Motor, Pump & Spray Arm (bdb420-1)


08 - Rack (bdc520-1)


09 - Rack Assembly (bdb420-1)


10 - Tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807016		Latch Asm		Appelez-nous	-
2	806846		Insulator		Appelez-nous	-
3	807450		Switch Cover		Appelez-nous	-
4	807043		Switch		Appelez-nous	-
5	803051		Screw		Appelez-nous	-
6	806398		Latch Knob		Appelez-nous	-
7	806830		Screw		Appelez-nous	-
8	808026		Door Trim		Appelez-nous	-
9	807262		Outer Panel		Appelez-nous	-
10	COMM PART		Insert, Door Panel   (Replaces: 807645)		Appelez-nous	-
11	807191		Inner Panel		Appelez-nous	-
12	807213		Ground Terminal		Appelez-nous	-
13	W11233072		Screw   (Replaces: 803416)			Immediately	$ 12.62
14	807212		Clamp		Appelez-nous	-
15	805682		Lh Arm		Appelez-nous	-
16	5300809243		Vent Baffle   (Replaces: 808329)				$ 20.25
17	WP74004005		Screw   (Replaces: 807293)				$ 6.95
18	COMM PART		Door Trim   (Replaces: 807347)		Appelez-nous	-
19	807501		Screw		Appelez-nous	-
20	807257		Panel		Appelez-nous	-
21	808028		Rh Trim		Appelez-nous	-
22	808027		Bottom Trim		Appelez-nous	-
23	808029		Lh Trim		Appelez-nous	-
24	806810		Screw		Appelez-nous	-
25	805683		Door Spring		Appelez-nous	-
26	805681		Rh Arm		Appelez-nous	-
27	805884		Spring Pad		Appelez-nous	-
28	803311		Screw		Appelez-nous	-
29	COMM PART		Arm Bracket   (Replaces: 806717)		Appelez-nous	-
30	800928		Nut		Appelez-nous	-
31	806967		Screw		Appelez-nous	-
32	807449		Door Guide		Appelez-nous	-
33	806976		Screw		Appelez-nous	-
NI	WP12990527		Screw   (Replaces: 807784)			Immediately	$ 7.15
NI	806894		Screw		Appelez-nous	-
NI	808330		Rivet		Appelez-nous	-
NI	808331		Baffle Seal		Appelez-nous	-
NI	5300809243		Vent Baffle   (Replaces: 808369)				$ 20.25

    View Diagram in Separate Window       Print Part List
