Diagram for 01 - Control Panel (bdb420-1)
01 - Control Panel (bdb420-1)

Diagram for 02 - Control Panel (bdc520-1)
02 - Control Panel (bdc520-1)

Diagram for 03 - Detergent Cup
03 - Detergent Cup

Diagram for 04 - Door Details
04 - Door Details

Diagram for 05 - Frame Details
05 - Frame Details

Diagram for 06 - Motor, Heater & Spray Arm (bdc520-1)
06 - Motor, Heater & Spray Arm (bdc520-1)

Diagram for 07 - Motor, Pump & Spray Arm (bdb420-1)
07 - Motor, Pump & Spray Arm (bdb420-1)

Diagram for 08 - Rack (bdc520-1)
08 - Rack (bdc520-1)

Diagram for 09 - Rack Assembly (bdb420-1)
09 - Rack Assembly (bdb420-1)

Diagram for 10 - Tub
10 - Tub


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 806402 Lh End Cap Appelez-nous -
3 807737 Rocker Switch Appelez-nous -
4 807094 Timer Knob Appelez-nous -
5 805324 Screw Appelez-nous -
6 808217 Console Panel Appelez-nous -
7 806401 Rh End Cap Appelez-nous -
8 805323 Spacer Appelez-nous -
9 808134 Timer Appelez-nous -
10 806972 Timer Guard Appelez-nous -
11 W11233072 Screw   (Replaces: 803416) In-Stock Immediately $ 12.62

12 807425 Splash Pan Appelez-nous -
13 806894 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

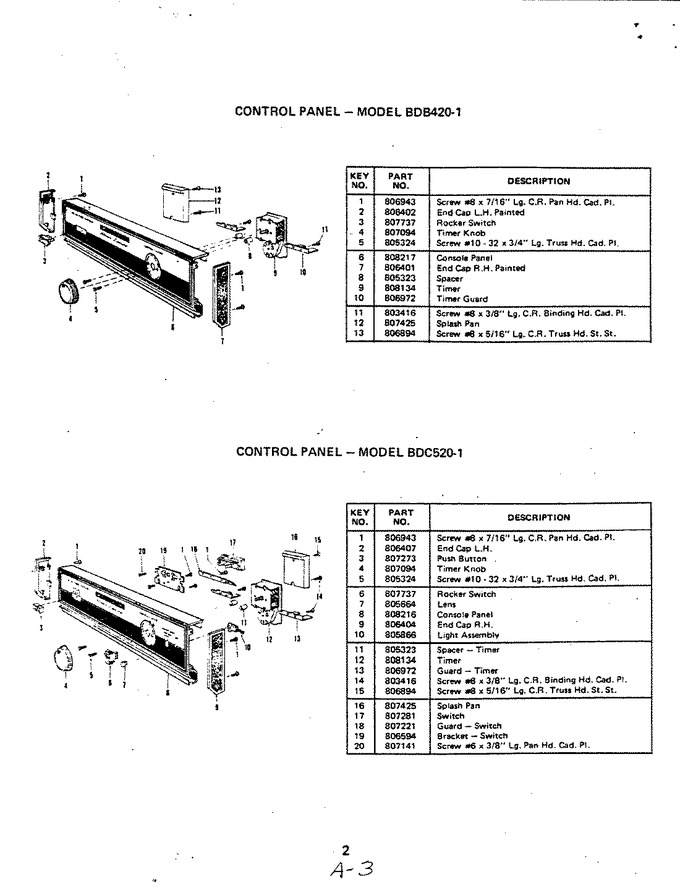

Diagram for BDC520-1
