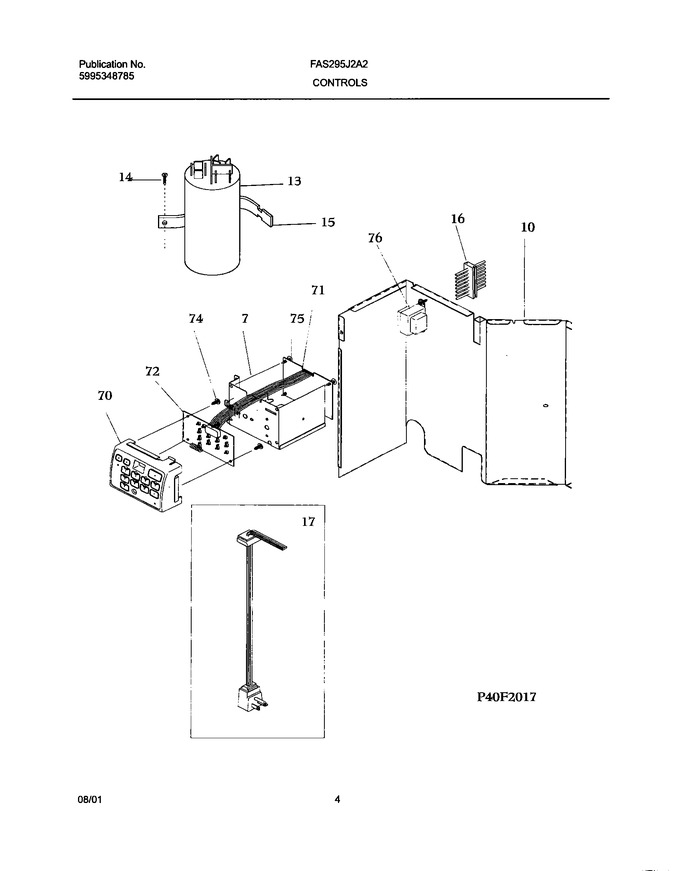

05 - Controls


07 - Air Handling


09 - System


11 - Window Mounting


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309630403		Control Box		Appelez-nous	-
10	309623601		Bulkhead,control System		Appelez-nous	-
12	5304415035		Thermistor		Appelez-nous	-
15	5303303077		Strap - Capacitor		Appelez-nous	-
38	5308009156		Screw,10-16ab X 0.500 , Motor Drive		Appelez-nous	-
71	5304420622		Kit		Appelez-nous	-
72	309350403		Board-input,sagem Hd				$ 170.67
74	3201861		Screw-bracket   (Replaces: 5303301590)				$ 0.76
75	5304413781		Support-pc Board		Appelez-nous	-
76	309111602		Transformer,240/12 Volt		Appelez-nous	-
17No.	309343120		Cord-service		Appelez-nous	-
F13	5303320002		Capacitor, 370 V, 7 + 40 Mfd		Appelez-nous	-
F16	5304408753		Harness-wiring		Appelez-nous	-
NI	5304417643		Ribbon Protector		Appelez-nous	-
NI	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
