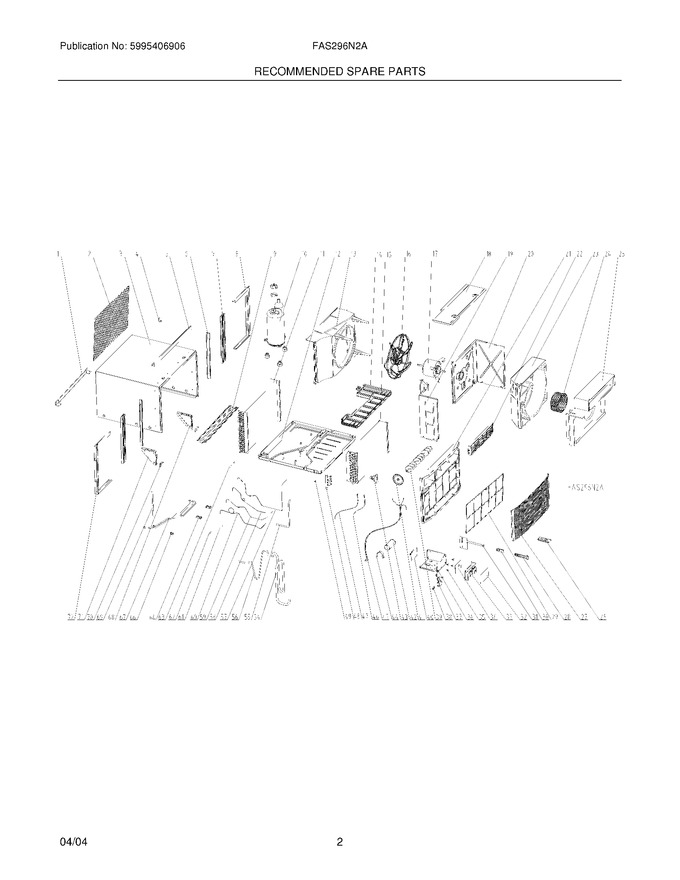

03 - Recommended Spare Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304414097		Rail,cabinet Bottom ,rear		Appelez-nous	-
2	5304408741		Grille,rear Panel ,aluminum		Appelez-nous	-
3	309623906		Cabinet,wrapper/sleeve		Appelez-nous	-
4	5303211056		Bracket-sash Lock		Appelez-nous	-
5	5304414116		Rail,cabinet Top ,front		Appelez-nous	-
6	5304414933		Retainer,shutter Mount ,cabinet Side		Appelez-nous	-
7	309645602		Shutter,accordion Panel ,rh/lh ,window Closure		Appelez-nous	-
8	5304414929		Frame,shutter ,gray ,rh ,extension		Appelez-nous	-
9	5304416310		Rail,cabinet Bottom ,front		Appelez-nous	-
12	309632916		Base,compressor Mtg ,with Studs		Appelez-nous	-
13	309623201		Shroud,cond Fan Motor				$ 99.33
14	309623501		Tray,evap Drip		Appelez-nous	-
18	309630302		Cover,blower Wheel ,top		Appelez-nous	-
19	309623602		Bulkhead,control System		Appelez-nous	-
20	309623401		Bulkhead,air System		Appelez-nous	-
21	309900101		Frame,cabinet Front				$ 75.55
22	309900301		Louver,horizontal				$ 44.52
23	309630102		Housing,blower Scroll		Appelez-nous	-
25	309630203		Plate,scroll Cover		Appelez-nous	-
27	309900201		Panel,front Grille				$ 98.39
28	309900601		Handle,vent Opener		Appelez-nous	-
29	309639001		Filter,micro-biologic ,framed		Appelez-nous	-
30	309902801		Detent,vent Handle		Appelez-nous	-
31	309321402		Door,vent ,with Actuator		Appelez-nous	-
32	309901704		Overlay,control Display		Appelez-nous	-
33	309900501		Enclosure,input Pcb ,control Panel		Appelez-nous	-
35	5304413781		Hardware,pcb Support		Appelez-nous	-
36	309630404		Control Box		Appelez-nous	-
38	309111201		Grommet,wire Protector		Appelez-nous	-
39	309904601		Louver,vertical				$ 29.30
41	309900401		Wheel,louver Adjuster		Appelez-nous	-
43	5308017149		Holder,thermistor Clip ,3/8 Inch		Appelez-nous	-
44	5303303077		Strap,capacitor Mtg.		Appelez-nous	-
49	5303302254		Nut,expansion Type		Appelez-nous	-
64	309903101		Grommet,cooling Tube		Appelez-nous	-
66	309904201		Seal,rubber ,w/double Holes		Appelez-nous	-
68	5304414105		Bracket,cab Support ,rh		Appelez-nous	-
70	3001815		Support,angle Bracket ,window Sill Mt.		Appelez-nous	-
71	5304414106		Bracket,cab Support ,lh		Appelez-nous	-
72	5304414928		Frame,shutter ,gray ,lh ,extension		Appelez-nous	-
F10	309904101		Compressor Assembly,w/electricals ,& Mtg Grommets		Appelez-nous	-
F11	5303306719		Condenser				$ 574.61
F15	309642001		Evaporator		Appelez-nous	-
F16	5304422465		Fan Blade,with Clamp		Appelez-nous	-
F17	309630616		Motor,fan		Appelez-nous	-
F24	309633001		Blower Wheel,plastic ,with Clamp		Appelez-nous	-
F26	309902201		Remote Control,transmitter ,with Lcd		Appelez-nous	-
F34	309901601		Pc Board,input/display				$ 31.29
F37	309900701		Ionizer		Appelez-nous	-
F40	309901501		Pc Board,power ,variable Speed ,230 V		Appelez-nous	-
F42	5304438658		Capacitor,450 Vac ,45+7.5 Mfd		Appelez-nous	-
F45	309343120		Power Cord,electric ,12 Awg ,gray ,230 V		Appelez-nous	-
F46	309201602		Sensor,thermistor ,ambient Temp				$ 39.06
F47	309201603		Sensor,thermistor ,evap Defrost				$ 33.39
F48	309301502		Manifold Assembly,suction		Appelez-nous	-
F54	309902301		Tube,suction ,copper		Appelez-nous	-
F55	309902401		Tube,connector ,copper ,capillary 2		Appelez-nous	-
F56	309903001		Tube,discharge ,copper		Appelez-nous	-
F57	309905101		Tube,capillary 1 ,copper		Appelez-nous	-
F58	309905201		Tube,capillary 2 ,copper		Appelez-nous	-
F59	309905301		Tube,capillary 3 ,copper		Appelez-nous	-
F60	309905401		Tube,capillary 4 ,copper		Appelez-nous	-
F61	309111005		Fitting,reducer .375 Od ,.114/.117 Id ,copper Tube		Appelez-nous	-
F62	309111002		Fitting,reducer .313 Od ,.114/.117 Id ,copper Tube		Appelez-nous	-
F63	5303290357		Strainer		Appelez-nous	-
F67	309903201		Tube,super Cooling		Appelez-nous	-
F69	5304438657		Tube,process ,copper		Appelez-nous	-
