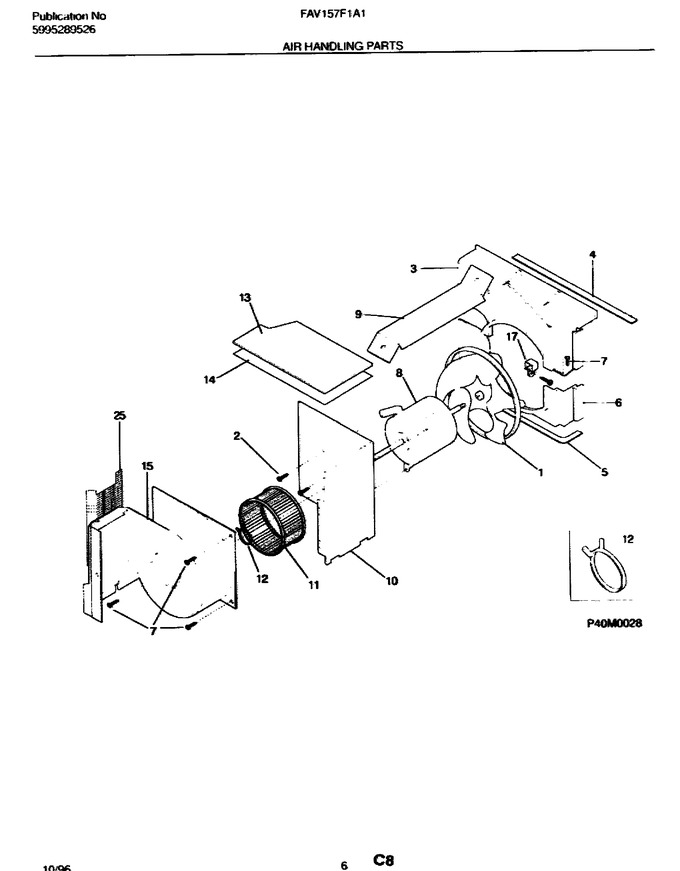

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 5303015305 | Housing-fan, Upper |
|
- | |||||
| 4 | 3016696 | Seal - Shroud Upper |
|
- | |||||
| 5 | 5303015311 | Seal - Scroll, Shroud |
|
- | |||||
| 6 | 5303015304 | Housing-fan,lower |
|
- | |||||
| 7 | 3015312 | Screw, 8-18 X 0.47 |
|
- | |||||
| 9 | 5303015306 | Bracket |
|
- | |||||
| 10 | 5303299319 | Bulkhead |
|
- | |||||
| 12 | 5303012110 | Clamp-blower |
|
$ 8.14 | |||||
| 13 | 5303015313 | Cover - Top |
|
- | |||||
| 14 | 3201832 | Insulation-cover |
|
- | |||||
| 15 | 5303201831 | Housing-blower |
|
- | |||||
| 17 | 5308011040 | Clamp - Fan Blade |
|
- | |||||
| 25 | 5303302933 | Screen |
|
- | |||||
| F1 | 5303321440 | Fan Blade & Clamp |
|
- | |||||
| F11 | 5303016832 | Blower Wheel |
|
- | |||||
| F8 | 5303317609 | Motor-fan, 3 Sp, 60, 115 |
|
- |
