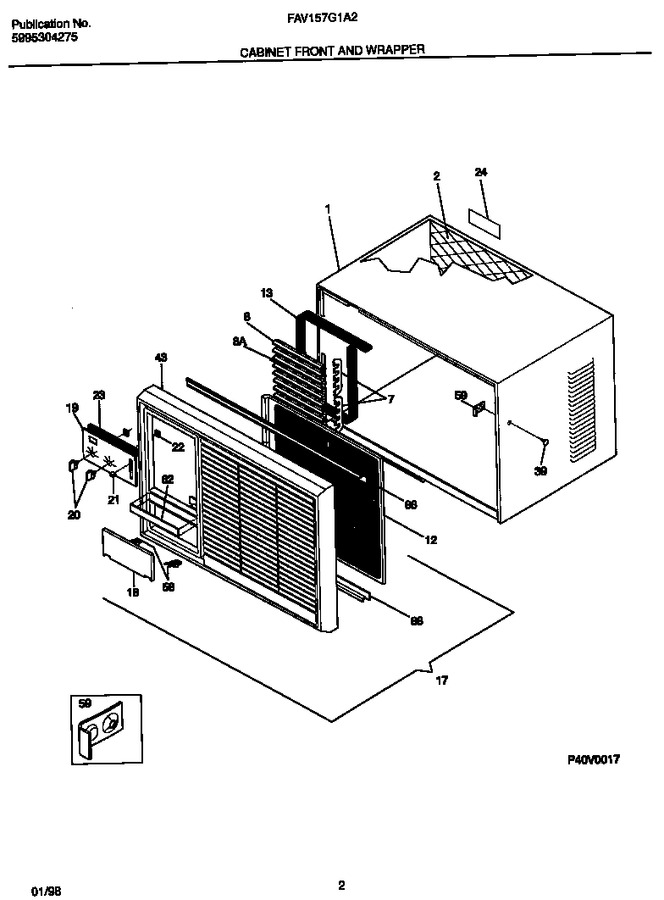

SELECT A DIAGRAM

01 - Cover


02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303545		Wrapper		Appelez-nous	-
2	5303210207		Grill,rear		Appelez-nous	-
7	5303202811		Link-louver		Appelez-nous	-
8	5303307463		Louver W/handle,(2)		Appelez-nous	-
8	5303307462		Louver,(8)		Appelez-nous	-
12	5303307477		Filter		Appelez-nous	-
13	5303201854		Seal-front		Appelez-nous	-
17	5304403944		Front,cabinet ,complete		Appelez-nous	-
18	5303202471		Door-front		Appelez-nous	-
19	5304403950		Dial Plate		Appelez-nous	-
20	5304402843		Knob-control,(2)		Appelez-nous	-
21	5304402841		Knob-slide		Appelez-nous	-
22	5303001775		Spacer, Plate		Appelez-nous	-
23	3201953		Seal-dial Plate		Appelez-nous	-
30	134178901		Screw,truss Head ,8-18 X 0.625 ,front ,(2),square Drive   (Replaces: 5303293767)				$ 14.89
43	5303307476		Frame-front		Appelez-nous	-
58	5303306190		Hinge-door		Appelez-nous	-
59	08010928		Nut - Front Lock		Appelez-nous	-
62	5304403943		Insert,frame ,front		Appelez-nous	-
66	5303272800		Rail, Filter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
