01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


06 - Water & Ice Dispenser

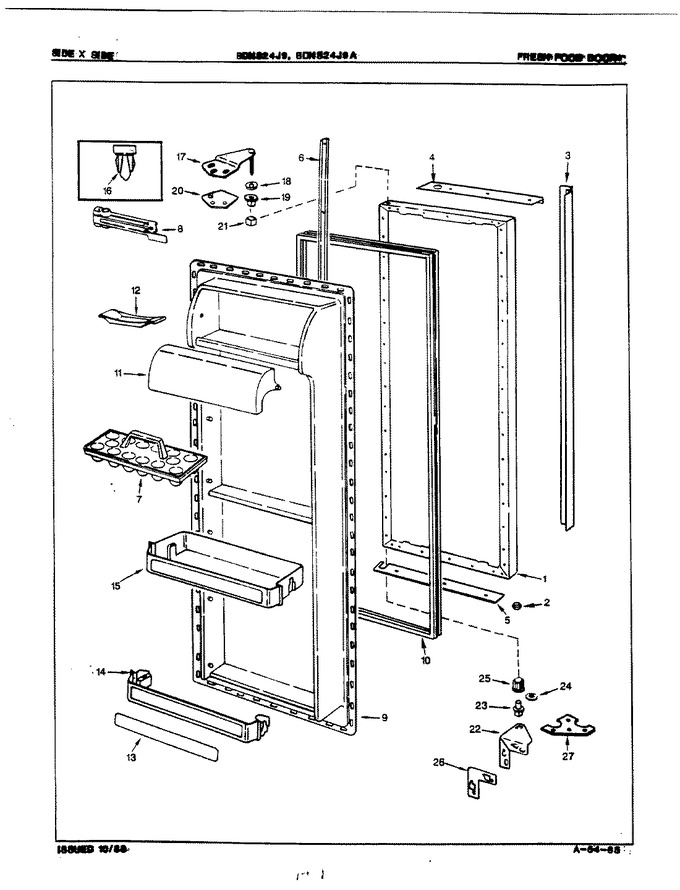

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66689-1-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	66934-6		Door Handle		Appelez-nous	-
3	66723-1		Clip		Appelez-nous	-
3	65275-4		Screw		Appelez-nous	-
4	66935-2		Perimeter Trim		Appelez-nous	-
5	66935-6		Perimeter Trim		Appelez-nous	-
6	400015-12		Screw		Appelez-nous	-
6	66935-3		Perimeter Trim		Appelez-nous	-
7	60066-1		Tray, Egg		Appelez-nous	-
8	52613-1		Insulation, Closer		Appelez-nous	-
8	54485-1		Closer, Door		Appelez-nous	-
8	52614-1		Bracket, Closer		Appelez-nous	-
9	9986-12		Screw,door Liner		Appelez-nous	-
9	65943-7		Liner, Door		Appelez-nous	-
10	53712-2		Gasket		Appelez-nous	-
11	66184-426		Door, Dairy		Appelez-nous	-
12	29936-2		Tray, Butter		Appelez-nous	-
13	68121-5		Insert		Appelez-nous	-
14	65781-6		Shelf Front		Appelez-nous	-
15	65782-6		Shelf, Pick-off		Appelez-nous	-
16	66875-1		Cover, Upper Hinge (chrome)		Appelez-nous	-
16	29458-2		Stud		Appelez-nous	-
17	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
17	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
18	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
19	66036-2		Bushing, Upper Hinge		Appelez-nous	-
20	65031-1		Shim, Upper Hinge		Appelez-nous	-
21	55990-1		Seal Sleeve		Appelez-nous	-
22	403062-5		Screw		Appelez-nous	-
22	60630-12		Hinge, Lower		Appelez-nous	-
23	53672-1		Pin, Lower Hinge		Appelez-nous	-
24	54233-1		Washer				$ 7.71
25	66034-1		Bushing, Lower Hinge				$ 19.76
26	60623-1		Wire Harness		Appelez-nous	-
27	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
