SELECT A DIAGRAM

01 - Cover


03 - Cabinet Front And Wrapper


05 - Controls


07 - Air Handling Parts


09 - Compressor Parts


13 - Window Mounting Parts

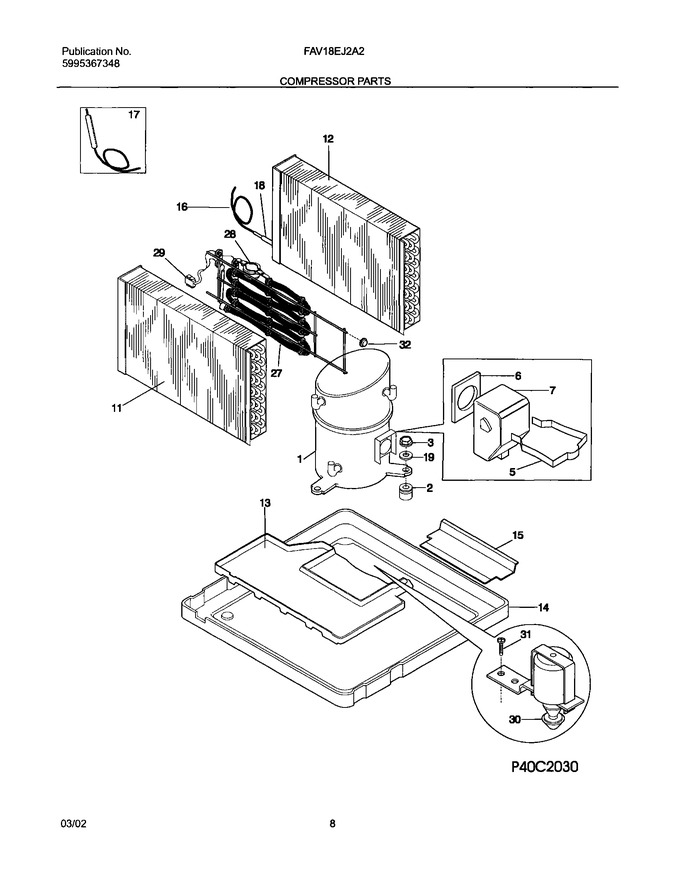

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303286606		Grommet,compressor Mtg ,(3)		Appelez-nous	-
3	5308006948		Nut,compressor Mtg ,(3)		Appelez-nous	-
5	5303002069		Clamp,terminal Cover		Appelez-nous	-
6	5303002068		Gasket,terminal Cover		Appelez-nous	-
7	5303002067		Cover,compr Terminal		Appelez-nous	-
13	5303208221		Tray,evaporator Drip		Appelez-nous	-
14	309632908		Base,compressor Mtg. ,with Studs		Appelez-nous	-
15	3201969		Shield,heater Baffle		Appelez-nous	-
19	5303002664		Washer,compressor Mtg		Appelez-nous	-
30	309363601		Valve-water,drain		Appelez-nous	-
31	5303209503		Screw,valve Mtg.		Appelez-nous	-
32	3018695		Nut,heater Assy ,self-threading		Appelez-nous	-
F1	5304426563		Compressor,230/208 V ,w/relief Valve		Appelez-nous	-
F11	5303317606		Evaporator		Appelez-nous	-
F12	5303306719		Condenser				$ 574.61
F16	5304409399		Capillary Tube,.125 X .064x 60		Appelez-nous	-
F17	5300265301		Drier-filter,service Kit				$ 284.30
F18	5303290357		Strainer		Appelez-nous	-
F27	5303201967		Heater Assy,with Thermostat		Appelez-nous	-
F28	5303016865		Thermostat-heater		Appelez-nous	-
F29	3201968		Wiring Harness		Appelez-nous	-
NI	309112501		Washer,metallic		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
