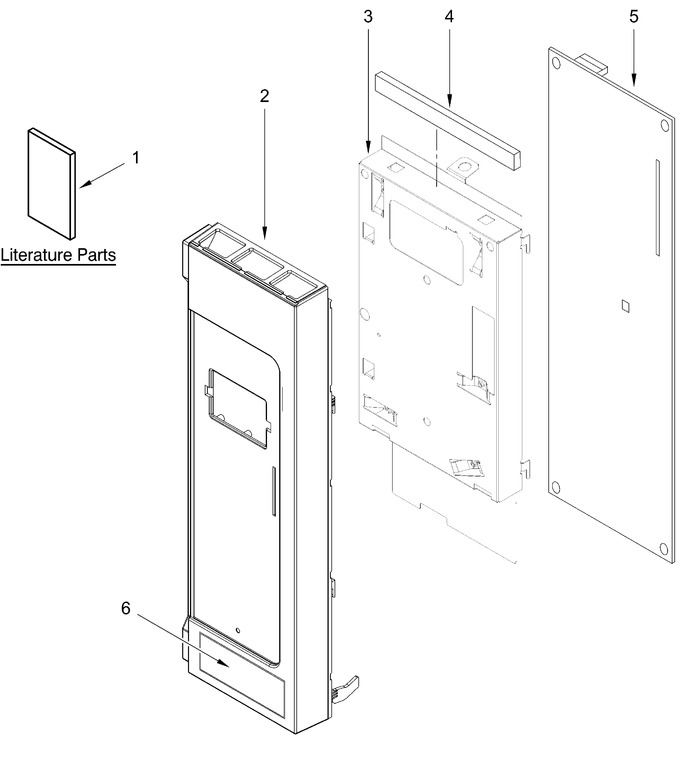

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W10890779 | Control Panel Assembly (white) |
|
$ 327.30 | |||||
| 3 | W11676791 | Backer, Control (Replaces: W10833365) |
|
$ 48.91 | |||||
| 4 | W11685342 | Seal, Control Panel (Replaces: W11217976) |
|
- | |||||
| 5 | W11774929 | Appliance Control Unit (Replaces: W11227424) |
|
- | |||||
| 6 | W10850630 | Push Button Assembly (white) |
|
$ 125.45 | |||||
| W11561752 | Tech Sheet |
|
- | ||||||
| W10850629 | Push Button Assembly (black) |
|
$ 124.61 | ||||||
| W11485888 | Installation Instructions |
|
- | ||||||
| W10918343 | Use And Care Guide |
|
- | ||||||
| W10851837 | Cooking Guide Label (english) |
|
- | ||||||
| W10918931 | Control Panel Assembly (stainless) |
|
Immediately | $ 308.87 | |||||
| W10851838 | Cooking Guide Label (french) |
|
- |
