SELECT A DIAGRAM
Air Flow Parts
Cabinet And Installation Parts
Control Panel Parts
Door Parts
Interior And Ventilation Parts
Turntable Parts
SELECT A DIAGRAM
New Model Search:

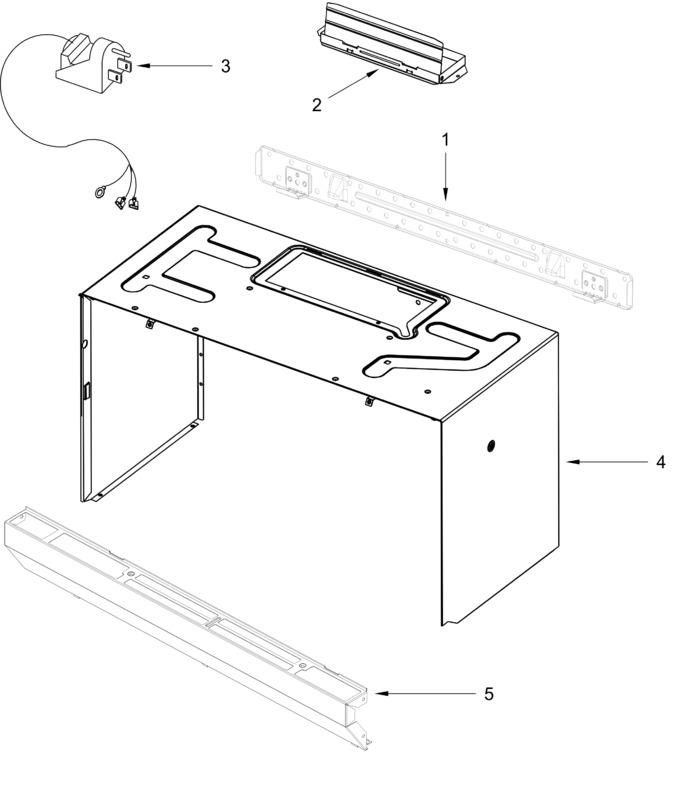

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting |
|
Immediately | $ 21.16 | ||||
| 2 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 65.74 | ||||
| 3 | W10708076 | Cord, Power |
|
$ 18.48 | |||||
| 4 | W11783245 | Case, Outer (white) (Replaces: W11446917) |
|
Immediately | $ 156.14 | ||||
| 5 | W10845642 | Grille, Vent (white) |
|
$ 86.71 | |||||
| W10821385 | Hardware, Installation |
|
Immediately | $ 88.90 | |||||
| W10539840 | Harness, Acu Ground Wire |
|
$ 21.50 | ||||||
| W11746342 | Harness, Main (Replaces: W11662304) |
|
Immediately | $ 70.92 | |||||
| ARI2EB13EA73395E08F3EB3E7CF4E6B6B38 | Miscellaneous Parts |
|
- | ||||||
| WP8169704 | Screw (Replaces: 8169704) |
|
Immediately | $ 10.07 | |||||
| W11776420 | Case, Outer (black) (Replaces: W11446916) |
|
Immediately | $ 156.14 | |||||
| W11301790 | Harness (magnetron To High Voltage Transformer) |
|
Immediately | $ 131.14 | |||||
| W10190018 | Template, Upper (english, French) |
|
Immediately | $ 6.47 | |||||
| W10845643 | Grille, Vent (black) |
|
$ 92.87 |
