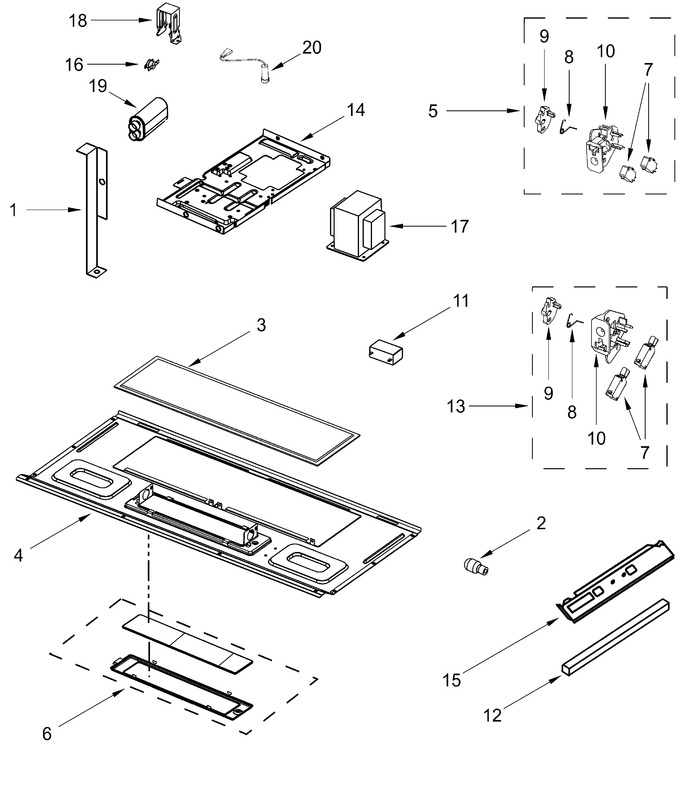

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Air Flow Parts
Cabinet And Installation Parts
Control Panel Parts
Door Parts
Interior And Ventilation Parts
Turntable Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10313275 | Bracket, Top Cavity |
|
$ 30.53 | |||||
| 2 | W11520384 | Lamp, Halogen |
|
Immediately | $ 9.37 | ||||
| 3 | W10208631A | Filter, Grease (Replaces: W10208631) |
|
Immediately | $ 29.33 | ||||
| 4 | W11450485 | Plate, Bottom |
|
$ 53.97 | |||||
| 5 | W11753209 | Interlock Assembly (includes Switches) (Replaces: W11710397) |
|
$ 58.08 | |||||
| 6 | W10240330 | Lamp Glass And Holder Assembly |
|
$ 6.47 | |||||
| 7 | ARI35D1AB1A8B32BEE7BBE724E1C4F50E27 | Switches, Interlock |
|
- | |||||
| 8 | W10604374 | Spring, Interlock |
|
- | |||||
| 9 | W10562613 | Plate, Cam |
|
Immediately | $ 16.05 | ||||
| 10 | WP8206419 | Support, Interlock (Replaces: 8206419) |
|
Immediately | $ 20.13 | ||||
| 11 | W11405832 | Capacitor, Hood Motor |
|
$ 24.52 | |||||
| 12 | W10571179 | Seal, Cooling |
|
- | |||||
| 13 | W11753210 | Interlock Assembly (includes Switches) (Replaces: W11710399) |
|
$ 58.08 | |||||
| 14 | W11520831 | Chassis |
|
Immediately | $ 56.47 | ||||
| 15 | W11521327 | Support, Ntc |
|
$ 56.50 | |||||
| 16 | W11574181 | Thermostat, Cavity (Replaces: W11397274) |
|
Immediately | $ 37.40 | ||||
| 17 | W11759254 | Transformer, High Voltage (Replaces: W11739997) |
|
$ 98.96 | |||||
| 18 | W10532063 | Bracket, Capacitor |
|
$ 25.45 | |||||
| 19 | W11846984 | Capacitor, High Voltage (Replaces: W10345331) |
|
- | |||||
| 20 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 29.88 | ||||
| ARI4FC9ED5C3C91C939A2F5256C364FCBC2 | (not Serviced, Order Interlock Assemblies) |
|
- |
