SELECT A DIAGRAM

01 - Cover Sheet


02 - Upper Cabinet/drum Heater


03 - Motor/blower/belt


04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Wiring Diagram


08 - Wiring Diagram

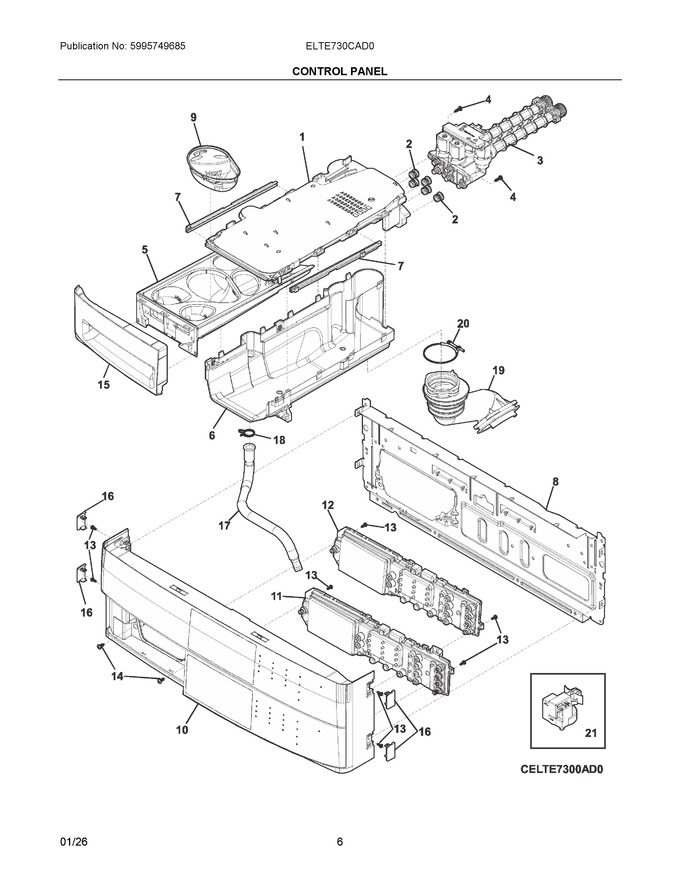

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304537814		Conveyor, Assembly, Dispenser			Immediately	$ 54.77
2	134371300		Gasket, Disp-to-valve			Immediately	$ 51.04
3	5304535924		Valve, Water, Vortex				$ 142.27
4	5304514820		Screw, Quad, #8-18 X .625				$ 2.89
5	5304535925		Drawer Assembly, Dispenser		Appelez-nous	-
6	5304535948		Housing, Dispenser				$ 63.86
7	5304514781		Slider, Drawer, Dispenser			Immediately	$ 84.59
8	5304535969		Bracket, Front Alignment		Appelez-nous	-
9	5304514801		Cup Assembly, Dispenser, Liquid, W/cover			Immediately	$ 91.09
10	5304536089		Console Assembly, Black, W/handle Overly			Immediately	$ 169.55
11	140244151035		User Interface Board, Assembly, Washer, W/housing		Appelez-nous	-
12	140244152033		User Interface Board, Assembly, Dryer, W/housing		Appelez-nous	-
13	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
14	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 26.58
15	5304536090		Handle, Dispenser, W/overlay		Appelez-nous	-
16	5304536013		Cover, Screw				$ 11.88
17	134625512		Hose, Disp-to-bellows		Appelez-nous	-
19	140251904011		Hose, Inlet, Dispenser		Appelez-nous	-
20	134372400		Clamp, Tub Hose				$ 64.49
21	5304505436		Sensor Switch, Pressure			Immediately	$ 51.64
NI	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces: 5303321209)				$ 10.63
NI	5304535935		Harness, Wiring, Main, Dryer				$ 166.49
NIA	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg				$ 12.76

    View Diagram in Separate Window       Print Part List
