SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

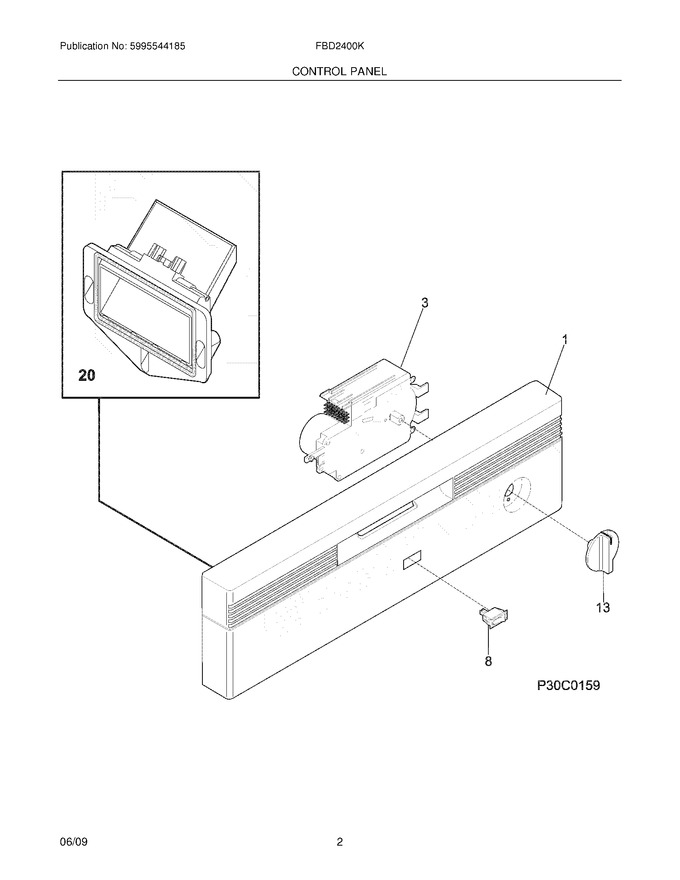

1	154667403		Panel,control ,black ,w/graphics				$ 80.43
13	154338303		Knob-timer,black				$ 53.50
20	154433001		Vent Assy,static Dry				$ 50.82
F3	154437801		Timer				$ 325.82
F8	154240403		Switch,rocker/selector ,black				$ 77.36
FNI	154645901		Harness,wiring ,main				$ 107.89
NI	154758401		Energy Guide		Appelez-nous	-
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154095701		Screw,thread Rolling ,(2) ,timer				$ 10.34
NI	154131204		Shield-timer		Appelez-nous	-
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42

    View Diagram in Separate Window       Print Part List
