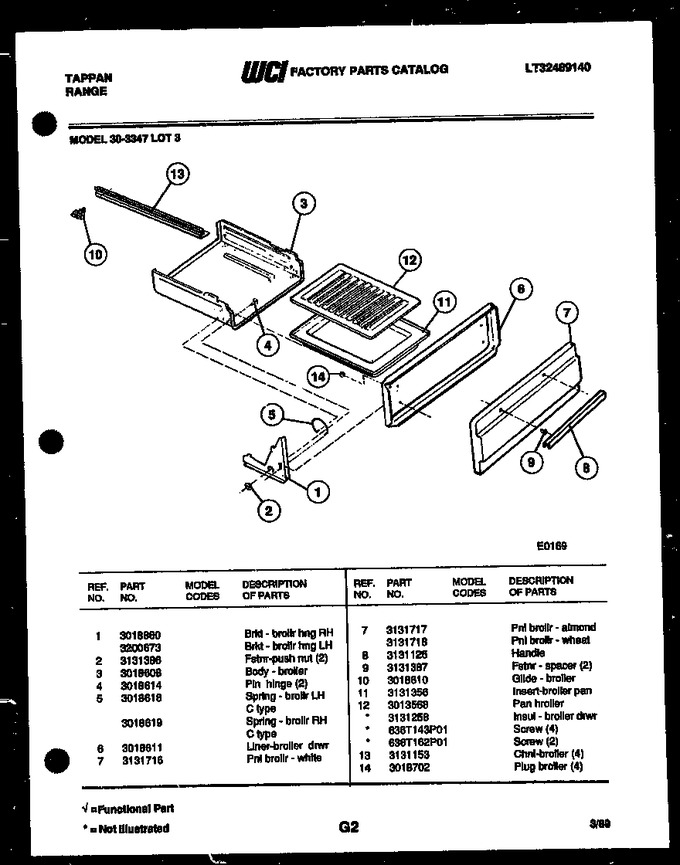

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018860		Brkt - Broilr Hng Rh		Appelez-nous	-
2	3131386		Fstnr, Push Nut (2)		Appelez-nous	-
3	3018608		Body, Broiler		Appelez-nous	-
4	3018614		Pin, Hinge (2)		Appelez-nous	-
5	3018618		Spring - Broilr Lh C Type		Appelez-nous	-
6	3018611		Liner - Broiler Drwr		Appelez-nous	-
7	3131717		Pnl Broilr (almond)		Appelez-nous	-
8	3131125		Handle		Appelez-nous	-
9	3131387		Fstnr, Spacer (2)		Appelez-nous	-
10	3018610		Glide-broiler				$ 29.40
11	3131356		Insert, Broiler Pan		Appelez-nous	-
12	3013568		Pan, Broiler		Appelez-nous	-
13	3131153		Chnl-broiler (4)		Appelez-nous	-
14	3018702		Plug - Broiler (4)		Appelez-nous	-
12A	3131258		Insul, Broiler Drwr (non-illustrated)		Appelez-nous	-
12B	636T143P01		Screw		Appelez-nous	-
12C	636T162P01		Screw (2) (non-illustrated)		Appelez-nous	-
1A	3200673		Brkt - Broilr Hng Lh		Appelez-nous	-
5A	3018619		Spring - Broilr Rh C Type		Appelez-nous	-
