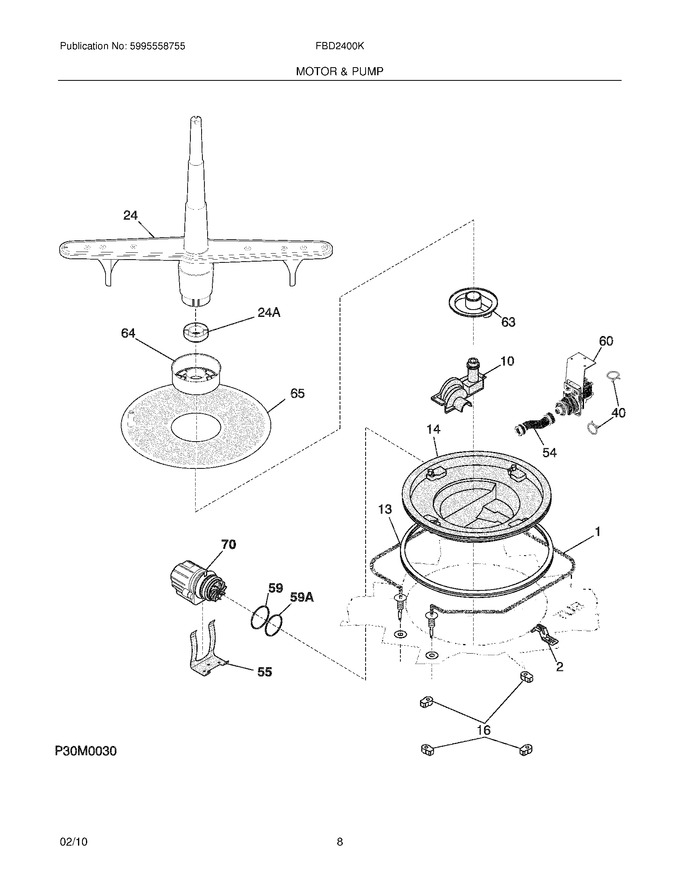

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	154479601		Bracket,heater ,(2)				$ 33.08
10	154335301		Cover-volute				$ 69.30
13	154246801		Gasket-sump				$ 52.17
14	154462003		Housing,sump				$ 43.47
16	154246502		Retainer, Sump			Immediately	$ 40.40
24	5304518927		Spray Arm,lower ,w/heat Shield   (Replaces: 154567701)			Immediately	$ 47.00
40	154348502		Clamp,red ,hose				$ 9.41
40	154348401		Clamp,hose ,red ,push Spring ,(3)				$ 32.96
54	154234401		Hose,connector				$ 68.68
55	5304534830		Bracket,motor   (Replaces: 154595901)				$ 5.54
59	154246901		O-ring,rear			Immediately	$ 56.70
63	5304532205		Base,soil Director   (Replaces: 154776101)			Immediately	$ 13.74
64	5304532205		Filter-soil Director   (Replaces: 154332602)			Immediately	$ 13.74
65	140281806020		Filter-polypro   (Replaces: 154252401)			Immediately	$ 8.85
24A	154335201		Nut,spray Arm			Immediately	$ 44.10
59A	154247001		O-ring,front			Immediately	$ 56.70
F1	154665201		Element,heater			Immediately	$ 78.97
F60	A00126501		Drain Pump Assy   (Replaces: 154640201)			Immediately	$ 130.16
F70	154859201		Motor & Pump Assy   (Replaces: 154792901)			Immediately	$ 381.26
NI	154200601		Screw,no.10-16 X 3/8				$ 7.98
NI	154106202		Nut,heater ,(2)			Immediately	$ 18.32
NI	154289801		Shield-heater Terminal				$ 7.33
NI	154754901		Screw,sump Mtg ,8-16 ,(4)			Immediately	$ 4.26
NI	154380601		Clamp,hose ,1.5`` Open ,worm Gear ,(5)				$ 73.71
NI	5303316032		Screw,truss Ss ,8 .625 ,(7)				$ 10.45
NI	154426201		Bracket,motor ,drain				$ 53.39
NI	154581501		Screw,drain Motor ,(3)				$ 13.46
