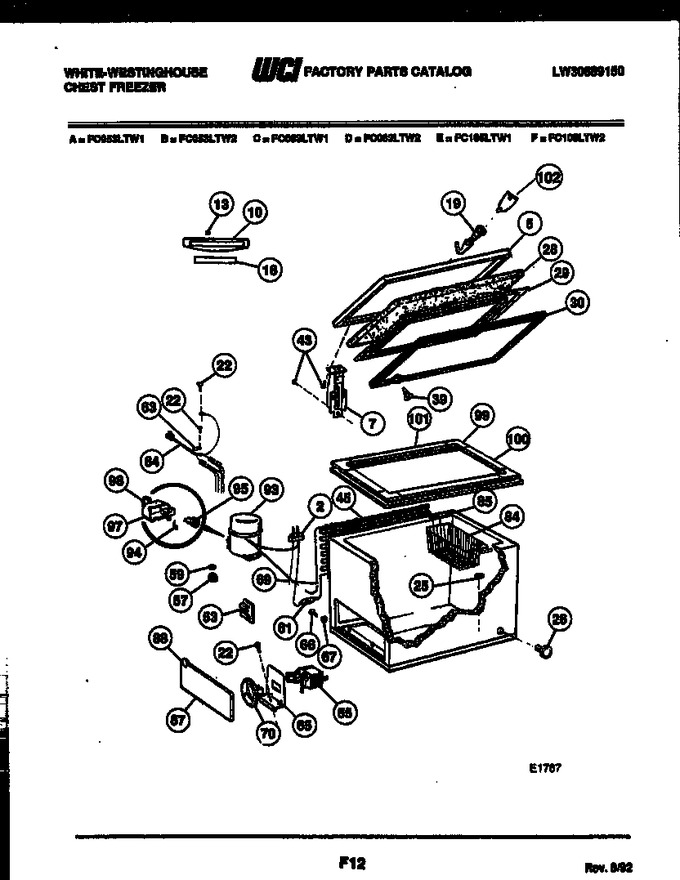

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 06599967 | Grommet |
|
- | |||||
| 5 | 3018265 | Lid |
|
- | |||||
| 7 | 09948660 | Hinge (2) |
|
- | |||||
| 10 | 09948646 | Handle |
|
- | |||||
| 13 | 09948647 | Clip (2) |
|
- | |||||
| 16 | F000128797 | Insert |
|
- | |||||
| 22 | 08037851 | Screw (2) |
|
$ 3.57 | |||||
| 25 | 06593887 | Plug |
|
- | |||||
| 26 | F128045 | Plug |
|
- | |||||
| 28 | 5303207455 | Insulation |
|
- | |||||
| 29 | 09950873 | Panel |
|
- | |||||
| 30 | 3018998 | Gasket |
|
- | |||||
| 39 | 3922007 | Clip (consists Of 24 Clips.) |
|
- | |||||
| 43 | 09950602 | Screw (10) |
|
- | |||||
| 45 | F120780 | Condenser (not Original Equipment. Service Replacement O |
|
- | |||||
| 53 | 06599553 | Clip, Wires |
|
- | |||||
| 55 | 08013601 | Thermostat |
|
- | |||||
| 57 | 08008778 | Grommet (4) |
|
- | |||||
| 59 | 09950343 | Clip (3) |
|
- | |||||
| 61 | 08000027 | Filter |
|
- | |||||
| 63 | 3017718 | Clamp |
|
- | |||||
| 64 | 3018261 | Harness |
|
- | |||||
| 65 | F000114180 | Bracket |
|
- | |||||
| 66 | 07526998 | Screw |
|
- | |||||
| 67 | F59650 | Nut |
|
- | |||||
| 69 | 05878546 | Spacer, Condenser |
|
- | |||||
| 70 | 08011881 | Knob |
|
- | |||||
| 84 | 3018276 | Basket |
|
- | |||||
| 85 | 3019003 | Handle (2) |
|
- | |||||
| 87 | F121199-1 | Panel |
|
- | |||||
| 88 | 09950877 | Retainer (4) |
|
- | |||||
| 93 | G186041 | Compressor |
|
- | |||||
| 94 | 3200838 | Relay & Overload |
|
- | |||||
| 95 | 3200838 | Overload & Relay |
|
- | |||||
| 97 | 08016583 | Cover |
|
- | |||||
| 98 | 08016584 | Retainer |
|
- | |||||
| 99 | 3203251 | Moulding (4) |
|
- | |||||
| 100 | 3203252 | Moulding (2) |
|
- | |||||
| 101 | 3019001 | Moulding (2) |
|
- | |||||
| 102 | F115646 | Key |
|
- |
