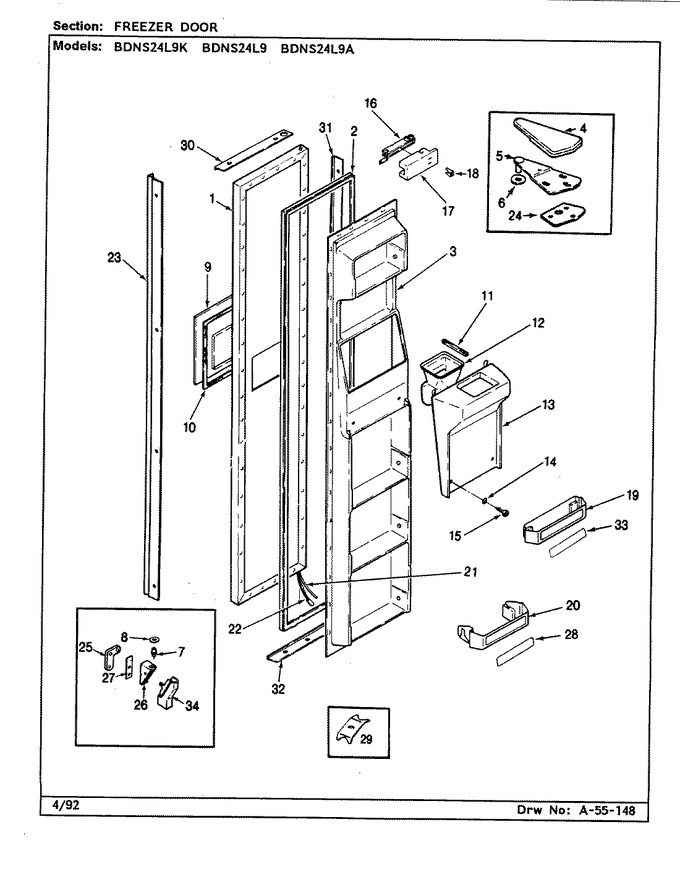

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RA95060-1 | Insulation Kit |
|
- | |||||
| 1 | 69028-1-AM | Panel, Frz. Door (alm) |
|
- | |||||
| 2 | 66929-1 | Gasket, Freezer Door |
|
- | |||||
| 3 | 65275-5 | Screw |
|
- | |||||
| 3 | 68554-2 | Liner |
|
- | |||||
| 3 | 68784-8 | Insert, Food Storage |
|
- | |||||
| 4 | 65003-3 | Cover, Upper Hinge (alm) |
|
- | |||||
| 5 | 53709-16 | Upper Hinge,(chrome) |
|
- | |||||
| 5 | WP3-24838-048 | Screw (Replaces: 65275-52) |
|
$ 7.00 | |||||
| 6 | WP52185-1 | Washer (Replaces: 52185-1) |
|
Immediately | $ 9.47 | ||||
| 7 | 68976-1 | Pin, Lower Hinge |
|
- | |||||
| 8 | 67483-3 | Washer, Door Spacer |
|
Immediately | $ 45.86 | ||||
| 9 | 68594-15 | Escutcheon |
|
- | |||||
| 10 | 95121-1 | Tape, Escutcheon |
|
- | |||||
| 11 | 52077-26 | Seal |
|
- | |||||
| 12 | 68569-1 | Chute, Ice |
|
- | |||||
| 13 | 68770-1 | Insulation |
|
- | |||||
| 13 | 68768-2 | Insulation |
|
- | |||||
| 13 | 68634-2 | Access Panel |
|
- | |||||
| 14 | 68786-2 | Stud |
|
- | |||||
| 15 | W11772394 | Screw (Replaces: 400021-103) |
|
Immediately | $ 10.94 | ||||
| 16 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 16 | 54485-1 | Closer, Door |
|
- | |||||
| 17 | 52613-1 | Insulation, Closer |
|
- | |||||
| 18 | 52614-1 | Bracket, Closer |
|
- | |||||
| 19 | 68727-4 | Pick-off Shelf |
|
- | |||||
| 20 | 65701-10 | Front, Pick-off |
|
- | |||||
| 21 | WPW10426709 | Tubing Plastic-door Panel (Replaces: 67187-1) |
|
$ 126.83 | |||||
| 22 | 68908-1 | Wire Harness |
|
- | |||||
| 23 | 66934-5 | Door Handle |
|
- | |||||
| 23 | 66799-1 | Achor, Screw |
|
- | |||||
| 23 | 65275-37 | Screw, Handle |
|
- | |||||
| 24 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 25 | 65275-10 | Screw, Tapping Plate |
|
- | |||||
| 25 | 67874-1 | Tapping Plate, Lower Hinge |
|
- | |||||
| 26 | 68975-1 | Hinge, Lower |
|
- | |||||
| 26 | 65275-51 | Screw, Lower Hinge |
|
- | |||||
| 27 | 69031-2 | Shim |
|
- | |||||
| 28 | 68121-55 | Insert, P.o. Shelf |
|
- | |||||
| 29 | 66723-1 | Clip |
|
- | |||||
| 30 | 66935-1 | Perimeter Trim |
|
- | |||||
| 31 | 66935-3 | Perimeter Trim |
|
- | |||||
| 32 | 65275-38 | Screw |
|
- | |||||
| 32 | 66935-5 | Perimeter Trim |
|
- | |||||
| 32 | 65275-45 | Screw |
|
- | |||||
| 33 | 68121-57 | Insert, P.o. Front (deep Stora |
|
- | |||||
| 34 | 68978-1 | Cover, Lower Hinge (blk) |
|
- | |||||
| 34 | 65275-47 | Screw, Hinge Cover (black) |
|
- |
