02 - Backguard
03 - Cooktop Parts
04 - Burner, Manifold And Gas Control
05 - Door Parts
06 - Broiler Drawer Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

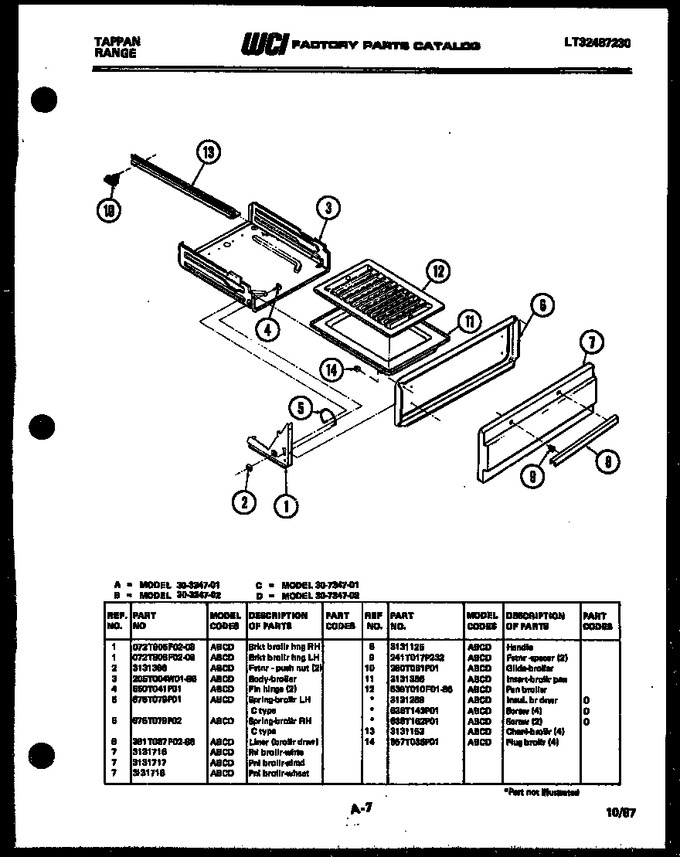

| 1 | 072T805F02-08 | Bracket, Broiler Hinge |
|
- | |||||
| 1 | 072T806F02-08 | Brkt Broilr Hng Lh |
|
- | |||||
| 2 | 3131386 | Fstnr, Push Nut (2) |
|
- | |||||
| 3 | 205T004W01-86 | Body, Broiler |
|
- | |||||
| 4 | 550T041P01 | Pin, Hinge (2) |
|
- | |||||
| 5 | 675T079P02 | Spring-broilr Rh C-type |
|
- | |||||
| 5 | 675T079P01 | Spring-broilr Lh C-type |
|
- | |||||
| 6 | 381T087F02-86 | Liner (broilr Drwr) |
|
- | |||||
| 7 | 3131718 | Pnl Broilr-wheat |
|
- | |||||
| 8 | 3131125 | Handle |
|
- | |||||
| 9 | 241T017P232 | Fstnr-spacer (2) |
|
- | |||||
| 10 | 280T061P01 | Glide - Broiler |
|
- | |||||
| 11 | 3131356 | Insert-broilr Pan |
|
- | |||||
| 12 | 539T010F01-86 | Pan, Broiler |
|
- | |||||
| 13 | 3131153 | Chanl-broilr (4) |
|
- | |||||
| 14 | 557T035P01 | Plug Broilr (4) |
|
- | |||||
| 12A | 3131258 | Insul. Br Drwr (non-illustrated) |
|
- | |||||
| 12B | 636T162P01 | Screw (2) (non-illustrated) |
|
- | |||||
| 12B | 636T143P01 | Screw |
|
- |
