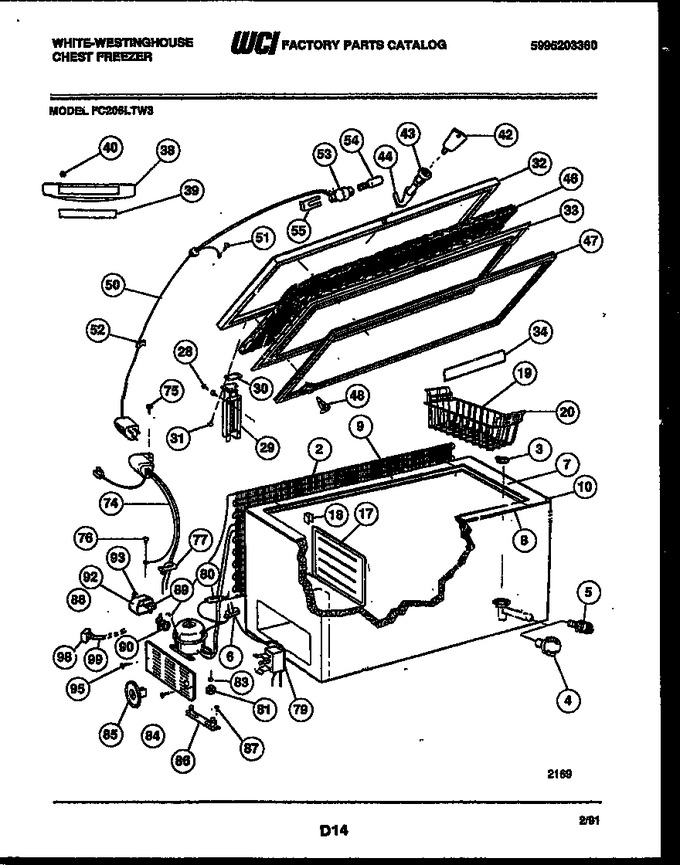

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 530300173 | External Condenser-(not Original Equipment-service Repla |
|
- | |||||
| 3 | 5306593887 | Plug, Drain, Liner |
|
- | |||||
| 4 | 5300128045 | Plug-drain Shell |
|
- | |||||
| 5 | 06594053 | Adapter, Hose |
|
- | |||||
| 6 | 08016808 | Grommet-control Tube |
|
- | |||||
| 7 | 5303210235 | Breaker Ends-gray (2) |
|
- | |||||
| 8 | 5303925095 | Breaker Front-gray |
|
- | |||||
| 9 | 5303925095 | Breaker Rear-gray |
|
- | |||||
| 10 | 5303210238 | Breaker Corners-gray (4) |
|
- | |||||
| 17 | F129066 | Divider Drain Pan |
|
- | |||||
| 18 | 5306594584 | Support Divider (4) |
|
$ 19.80 | |||||
| 19 | 5308016768 | Basket (2) |
|
- | |||||
| 20 | 5303019003 | Handle Basket-blue (4) |
|
- | |||||
| 28 | 5303091426 | Screw Hinge Base (8) |
|
- | |||||
| 29 | 297321900 | Hinge (2) (Replaces: 5303925006) |
|
$ 90.01 | |||||
| 30 | 3091421 | Spacer Hinge Wing (2) |
|
- | |||||
| 31 | 5309950602 | Screw Hinge Wing (8) |
|
$ 5.30 | |||||
| 32 | 5312901264 | Lid Exterior-white |
|
- | |||||
| 33 | 3019005 | Panel Inner Lid-white |
|
- | |||||
| 34 | 3019006 | Light Shield |
|
- | |||||
| 38 | 5309950054 | Handle |
|
- | |||||
| 39 | 5300128795 | Insert Handle |
|
- | |||||
| 40 | 5309948647 | Fastener, Handle |
|
- | |||||
| 42 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 43 | 5300190358 | Lock-complete |
|
- | |||||
| 44 | 5300300791 | Lock Hook |
|
- | |||||
| 46 | 5300128901 | Insulation Lid |
|
- | |||||
| 47 | 3019007 | Gasket Lid-gray |
|
- | |||||
| 48 | 5303212828 | Clip-panel (46) |
|
$ 16.63 | |||||
| 50 | 08016807 | Wire Harness Lid |
|
- | |||||
| 51 | 216858001 | Screw-ground Wire (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 52 | 09950610 | Clip |
|
- | |||||
| 53 | 5306599955 | Socket Light |
|
- | |||||
| 54 | 5303091423 | Light Bulb |
|
- | |||||
| 55 | 5306599968 | Retainer Socket |
|
- | |||||
| 74 | 5303212612 | Wiring Harness |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 08016762 | Clip Wires (2) |
|
- | |||||
| 79 | 5304496560 | Cold Control (Replaces: 5303212610) |
|
$ 49.62 | |||||
| 80 | 5303305677 | Drier (Replaces: 5300152474) |
|
Immediately | $ 31.67 | ||||
| 81 | 5308008778 | Grommet Compressor (4) |
|
- | |||||
| 83 | 5309950343 | Clip Compressor (4) |
|
- | |||||
| 84 | 5303212647 | Access Panel-white |
|
- | |||||
| 85 | 5303270910 | Control Knob |
|
- | |||||
| 86 | 08016764 | Support Compressor (2) |
|
- | |||||
| 87 | 08016776 | Screw-support (2) |
|
- | |||||
| 88 | 5303916411 | Compressor |
|
- | |||||
| 89 | 5303017753 | Relay |
|
- | |||||
| 90 | 5303206836 | Overload |
|
- | |||||
| 92 | 5303006411 | Cover, Terminal |
|
- | |||||
| 93 | 5303006412 | Clamp Cover |
|
- | |||||
| 95 | 216858001 | Screw Access Panel (2) (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 98 | 5303916391 | Run Capacitor |
|
- | |||||
| 99 | 5303091425 | Harness Capacitor |
|
- | |||||
| 44A | 5303210240 | Latch Catch (non-illustrated) |
|
- | |||||
| 44B | 5303208481 | Support Latch (non-illustrated) |
|
- | |||||
| 95A | 08016777 | Retainer Power Cord (non-illustrated) |
|
- |
