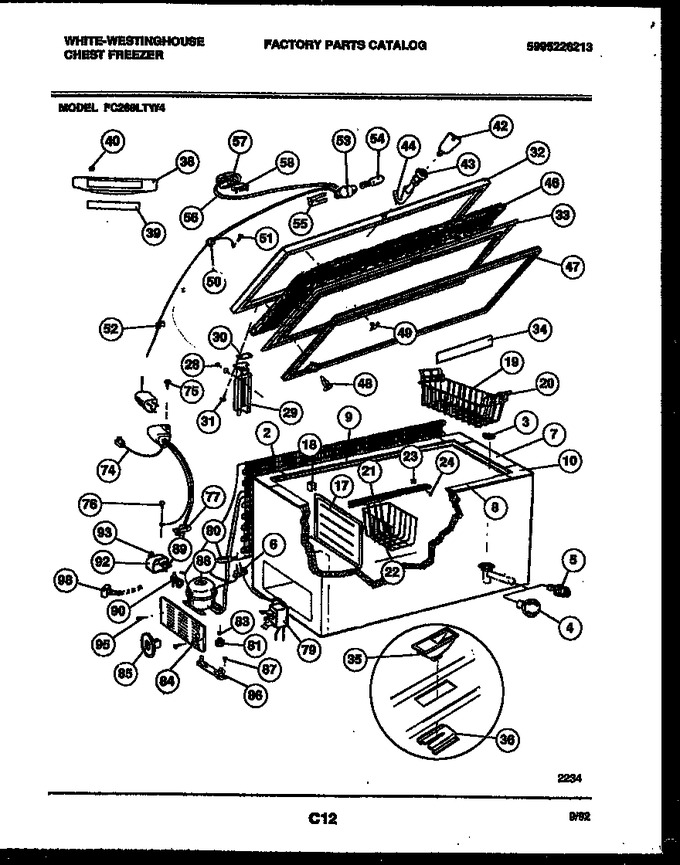

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5300300173 | External Condenser (service Replacement Part Only-not Or |
|
- | |||||
| 3 | 5306593887 | Plug, Drain, Liner |
|
- | |||||
| 4 | 5300128045 | Plug-drain Shell |
|
- | |||||
| 5 | 06594053 | Adapter, Hose |
|
- | |||||
| 6 | 08016808 | Grommet-control Tube |
|
- | |||||
| 7 | 5303210235 | Breaker Ends |
|
- | |||||
| 8 | 5303925104 | Breaker Front |
|
- | |||||
| 9 | 5303925104 | Breaker Rear |
|
- | |||||
| 10 | 5303210238 | Breaker Corners |
|
- | |||||
| 17 | 216034600 | Divider-drain Pan |
|
- | |||||
| 18 | 5306594584 | Supports Divider (4) |
|
$ 19.80 | |||||
| 19 | 5308016768 | Basket (2) |
|
- | |||||
| 20 | 5303019003 | Handle Basket-blue (4) |
|
- | |||||
| 21 | 3019008 | Track Basket |
|
- | |||||
| 22 | 5303283553 | Basket Lower |
|
- | |||||
| 23 | 301036 | Insert-nut (Replaces: 3017666) |
|
$ 15.90 | |||||
| 24 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 28 | 5303091426 | Screw Hinge Base |
|
- | |||||
| 29 | 5303925033 | Hinge |
|
$ 100.84 | |||||
| 30 | 3091421 | Spacer Hinge Wing |
|
- | |||||
| 31 | 5309950602 | Screw-hinge Wing |
|
$ 5.30 | |||||
| 32 | 216032401 | Lid Exterior-white |
|
- | |||||
| 33 | 216033601 | Panel Inner-white |
|
- | |||||
| 34 | 3019006 | Light Shield |
|
- | |||||
| 35 | 5303210240 | Latch Catch-gray |
|
- | |||||
| 36 | 5303208481 | Support Latch |
|
- | |||||
| 38 | 5309950054 | Handle |
|
- | |||||
| 39 | 5303291358 | Insert Handle |
|
- | |||||
| 40 | 5309948647 | Fastener, Handle |
|
- | |||||
| 42 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 43 | 5303925107 | Lock-complete |
|
- | |||||
| 44 | 5300300791 | Lock Hook |
|
- | |||||
| 46 | 5300128901 | Insulation Lid |
|
- | |||||
| 47 | 3019010 | Gasket Lid-gray |
|
- | |||||
| 48 | 5303212828 | Clip,panel |
|
$ 16.63 | |||||
| 49 | 5309948955 | Clip-panel W/sig Light |
|
$ 11.53 | |||||
| 50 | 216040800 | Wire Harness Lid |
|
- | |||||
| 51 | 216858001 | Screw-ground Wire (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 52 | 09950610 | Clip |
|
- | |||||
| 53 | 216039700 | Socket-light |
|
- | |||||
| 54 | 5303091423 | Bulb |
|
- | |||||
| 55 | 5306599968 | Retainer Socket |
|
- | |||||
| 56 | 06599965 | Jumper Wire |
|
- | |||||
| 57 | 5308037857 | Sealing Cap |
|
- | |||||
| 58 | 5308002706 | Signal Light |
|
$ 39.11 | |||||
| 74 | 5303212612 | Wiring Harness |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 08016762 | Clip Wires |
|
- | |||||
| 79 | 5304496560 | Control Temp (Replaces: 5303212610) |
|
$ 49.62 | |||||
| 80 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 5308008778 | Grommet Compressor |
|
- | |||||
| 83 | 216056400 | Clip Compressor |
|
- | |||||
| 84 | 216022700 | Access Panel |
|
- | |||||
| 85 | 216034508 | Knob Control |
|
- | |||||
| 86 | 5303212615 | Support, Compressor |
|
- | |||||
| 87 | 08016776 | Screw-support |
|
- | |||||
| 88 | 5303916411 | Compressor W/ Electricals |
|
- | |||||
| 89 | 5303017753 | Relay |
|
- | |||||
| 90 | 5303206836 | Overload |
|
- | |||||
| 92 | 5303006411 | Cover, Terminal |
|
- | |||||
| 93 | 5303006412 | Clamp Cover |
|
- | |||||
| 95 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 98 | 216134800 | Capacitor Run |
|
- | |||||
| 95A | 08016777 | Retainer Cord (not Original Equipment-customer Purchaseoption) (non-illustrated) |
|
- |
