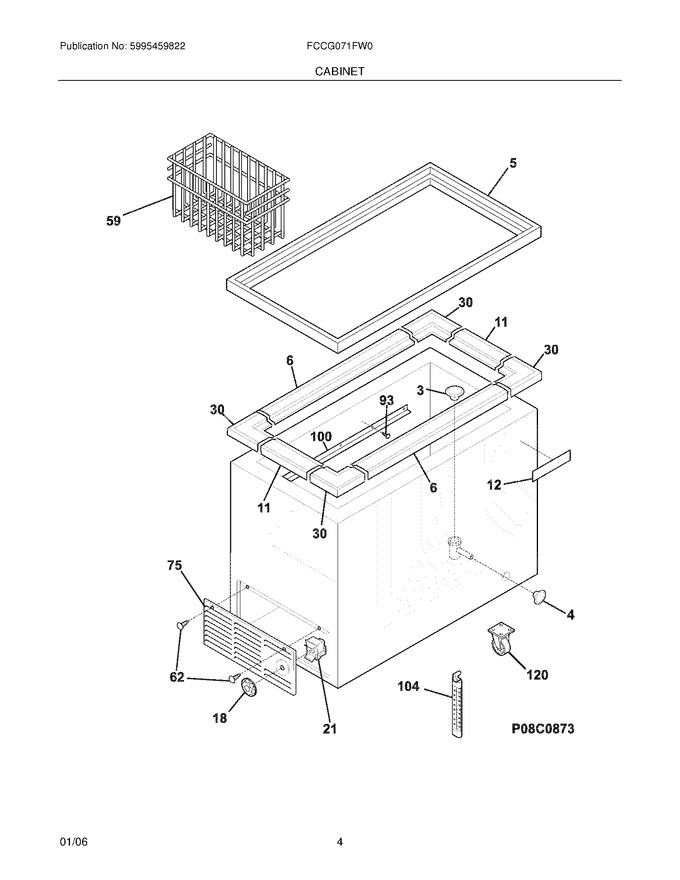

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216502600 | Plug-drain,interior |
|
Immediately | $ 17.35 | ||||
| 4 | 297013600 | Plug-drain,exterior |
|
$ 9.98 | |||||
| 5 | 216620514 | Frame,outer |
|
- | |||||
| 6 | 216855702 | Breaker,side |
|
- | |||||
| 11 | 216855706 | Breaker-ends,white |
|
- | |||||
| 12 | 297073400 | Nameplate,commercial ,stainless |
|
$ 124.03 | |||||
| 18 | 216707201 | Knob,temp Control |
|
$ 37.54 | |||||
| 30 | 216105500 | Breaker-corners,white |
|
$ 46.83 | |||||
| 59 | 216657300 | Basket |
|
$ 124.16 | |||||
| 62 | 131168200 | Screw,pan Head ,8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 75 | 216782000 | Panel-access,white |
|
- | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 100 | 216654200 | Track-basket |
|
- | |||||
| 104 | 297070100 | Thermometer |
|
- | |||||
| 120 | 216621000 | Caster |
|
- | |||||
| F21 | 5304496559 | Control-temperature (Replaces: 216787700) |
|
Immediately | $ 44.18 | ||||
| NI | 301036 | Nut-insert (Replaces: 3017666) |
|
$ 15.90 | |||||
| NI | 216649700 | Caster Pack,4 Casters ,wrench ,16 Screws |
|
- | |||||
| NI | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
