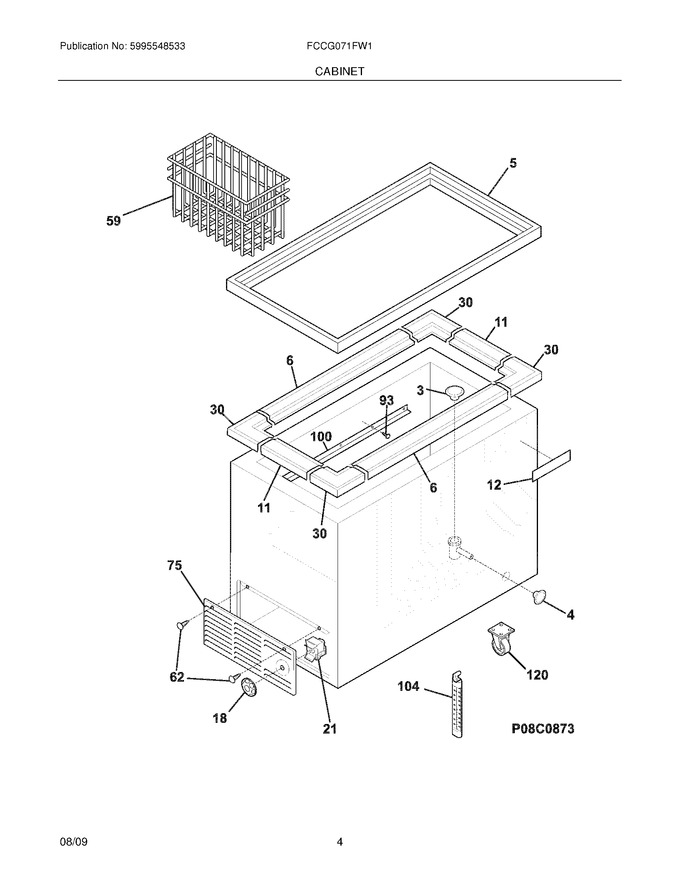

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	297013600		Plug-drain,exterior				$ 9.98
5	216620514		Frame,outer		Appelez-nous	-
6	216855702		Breaker,side		Appelez-nous	-
11	216855706		Breaker-ends,white		Appelez-nous	-
12	297073400		Nameplate,commercial ,stainless				$ 124.03
18	216707201		Knob,temp Control				$ 37.54
30	216105500		Breaker-corners,white				$ 46.83
59	297118400		Basket		Appelez-nous	-
62	5304463819		Screw,ab ,8-18x3/8				$ 1.27
75	216782000		Panel-access,white		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
100	216654200		Track-basket		Appelez-nous	-
104	297070100		Thermometer		Appelez-nous	-
120	216621000		Caster		Appelez-nous	-
F21	5304496559		Control-temperature   (Replaces: 216787700)			Immediately	$ 44.18
NI	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
NI	216649700		Caster Pack,4 Casters ,wrench ,16 Screws		Appelez-nous	-
NI	240494001		Plug,white   (Replaces: 297095300)			Immediately	$ 18.20
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
