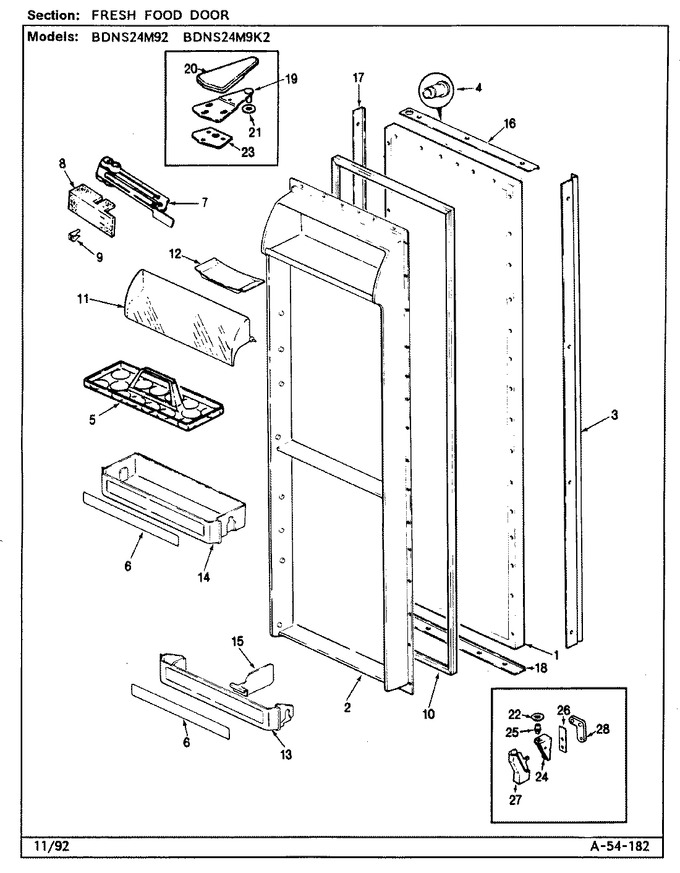

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72048-18-WW		Panel, Outer Door		Appelez-nous	-
2	65943-7		Liner, Door		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	66799-1		Achor, Screw		Appelez-nous	-
3	68658-1		Door Handle		Appelez-nous	-
3	65275-37		Screw, Handle		Appelez-nous	-
4	29356-1		Retainer, Nameplate		Appelez-nous	-
5	60066-1		Tray, Egg		Appelez-nous	-
6	68121-61		Insert		Appelez-nous	-
6	68121-60		Insert		Appelez-nous	-
7	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
7	54485-1		Closer, Door		Appelez-nous	-
8	52613-1		Insulation, Closer		Appelez-nous	-
9	52614-1		Bracket, Closer		Appelez-nous	-
10	66929-2		Gasket		Appelez-nous	-
11	69058-12		Door, Dairy		Appelez-nous	-
12	29936-2		Tray, Butter		Appelez-nous	-
13	65781-6		Shelf Front		Appelez-nous	-
14	65782-6		Shelf, Pick-off		Appelez-nous	-
15	66645-6		Organizer Package		Appelez-nous	-
16	68203-2		Trim, Perimeter (top)		Appelez-nous	-
17	68205-4		Trim, Perimeter (side)		Appelez-nous	-
18	65275-71		Screw		Appelez-nous	-
18	68204-2		Trim, Perimeter (bottom)		Appelez-nous	-
19	53709-26		Hinge Upper		Appelez-nous	-
19	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
20	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
21	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
22	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
23	65031-1		Shim, Upper Hinge		Appelez-nous	-
24	65275-51		Screw, Lower Hinge		Appelez-nous	-
24	68975-4		Hinge, Lower		Appelez-nous	-
25	68977-1		Pin, Hinge		Appelez-nous	-
26	69031-2		Shim		Appelez-nous	-
27	68978-4		Cover, Lower Hinge (wht)		Appelez-nous	-
28	65275-59		Screw		Appelez-nous	-
28	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
