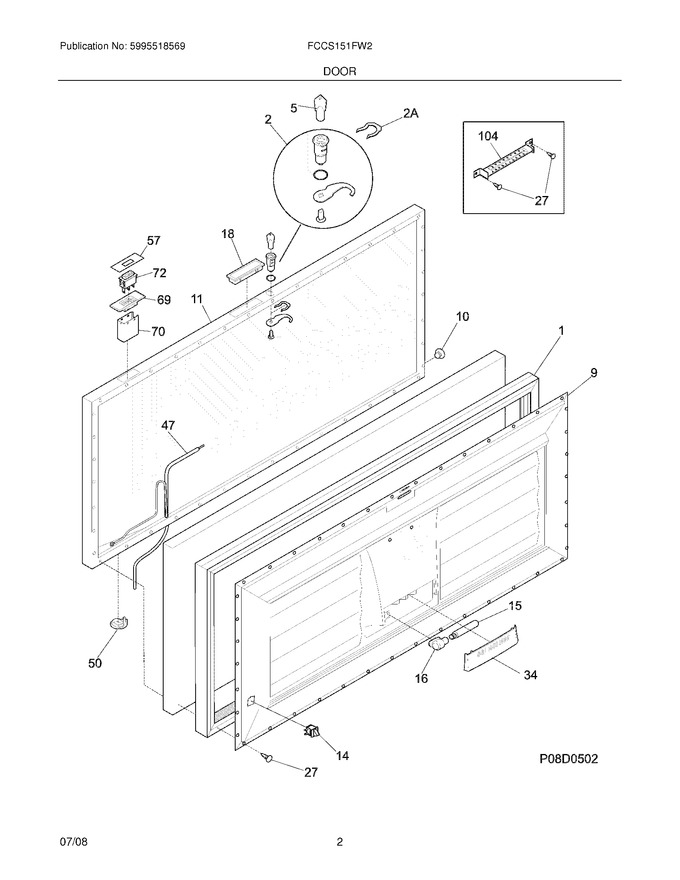

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481211		Gasket-door, White   (Replaces: 216481201)				$ 204.03
2	297090100		Lock Assy				$ 21.27
5	297147700		Key,lock			Immediately	$ 7.57
9	216057908		Panel-inner Lid		Appelez-nous	-
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216129942		Panel-outer Lid				$ 263.92
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216998000)			Immediately	$ 70.16
15	297070300		Light Bulb,25w ,130v				$ 63.51
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	297034202		Handle,recessed ,chrome ,w/gasket				$ 39.43
27	5303212828		Clip,panel Mtg				$ 16.63
34	216087900		Shield, Light				$ 13.13
50	216855400		Cover,hinge,w/tape,,(2)		Appelez-nous	-
57	297069900		Overlay,max Freeze		Appelez-nous	-
69	297069700		Bezel,switch ,max Freeze		Appelez-nous	-
70	297069800		Cap,seal ,switch		Appelez-nous	-
104	297074200		Thermometer		Appelez-nous	-
2A	297090900		Clip,spring				$ 10.85
F47	297068900		Harness-lid		Appelez-nous	-
F72	297070000		Switch,rocker		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 10.85
