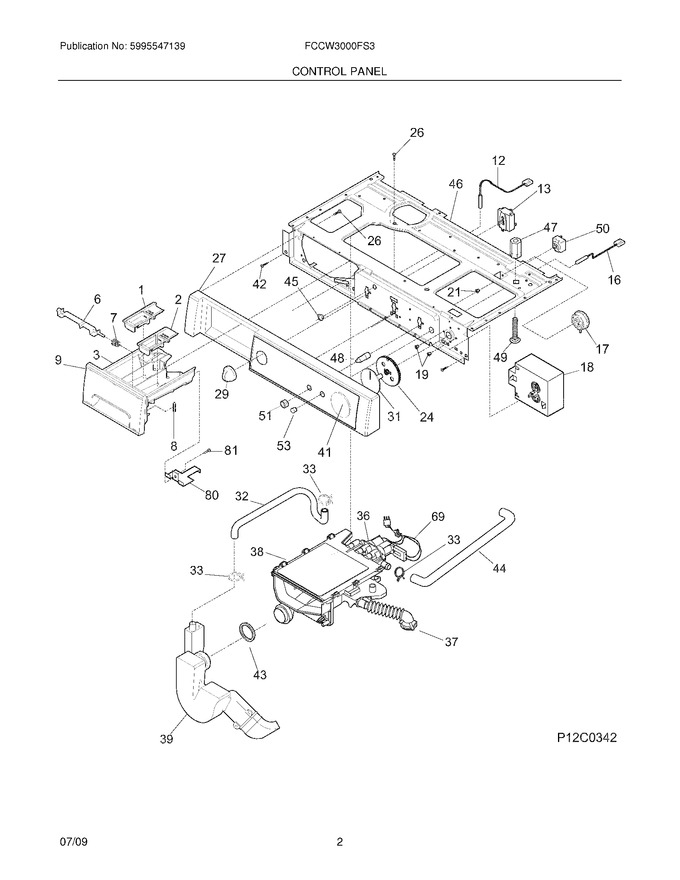

03 - Control Panel


05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131272100		Cover-bleach				$ 42.50
2	131272000		Cover-softener				$ 71.66
3	131271910		Drawer,dispenser				$ 52.03
6	131374500		Latch,disp Drawer Hdl				$ 44.45
7	131427500		Spring				$ 14.07
8	131373800		Magnet				$ 48.62
9	131691266		Handle/drawer Assy,w/trim		Appelez-nous	-
16	131724700		Lamp,status Light				$ 59.59
19	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
21	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
24	134549100		Cam,timer		Appelez-nous	-
26	131823400		Screw,8-18 X 2.00				$ 1.42
27	131691033		Console,frame/trim Assy		Appelez-nous	-
29	131264500		Knob,rotary ,white				$ 39.48
31	134549201		Dial,timer Indicator		Appelez-nous	-
32	137207300		Hose,siphon/valve				$ 13.49
33	131306213		Clamp,hose ,wire				$ 1.80
37	131271600		Hose-tub				$ 90.01
38	131803710		Dispenser Assy				$ 339.83
39	131863300		Siphon				$ 30.96
41	131696601		Lens,timer Pointer		Appelez-nous	-
42	131168200		Screw,10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 14.18
43	131749200		Gasket-seal				$ 20.33
44	137207200		Hose,dispenser				$ 15.02
45	5303321107		Bushing,idler				$ 4.52
46	134191412		Panel,control Mtg. ,wing Bend				$ 168.89
47	131981900		Spacer,security				$ 46.10
48	131686000		Extension,switch Shaft ,push-to-start				$ 54.08
49	131686601		Bolt,carriage ,3/8-16 X 3.50				$ 10.04
51	131970200		Button,push/start ,white				$ 55.02
53	131724800		Lens,status Light ,clear				$ 12.06
80	131734300		Catch,drawer				$ 44.36
81	131302800		Screw,10-16ab X 0.375			Immediately	$ 26.58
F12	131505902		Switch,reed				$ 118.60
F13	134603400		Switch,water Temp ,4 Posn Rotary				$ 53.97
F17	134438301		Switch,pressure ,water Optimizer				$ 49.14
F18	134812400		Timer				$ 499.83
F36	131974700		Valve,dispenser ,w/seal			Immediately	$ 104.10
F50	134902000		Switch,push-to-start				$ 25.20
F69	134993700		Wiring Harness,main		Appelez-nous	-
NI	131307900		Clamp,siphon/bellows				$ 11.34
NI	131931201		Dampener,vibration ,3.5 X 2 X 2 In. ,foam				$ 14.02
