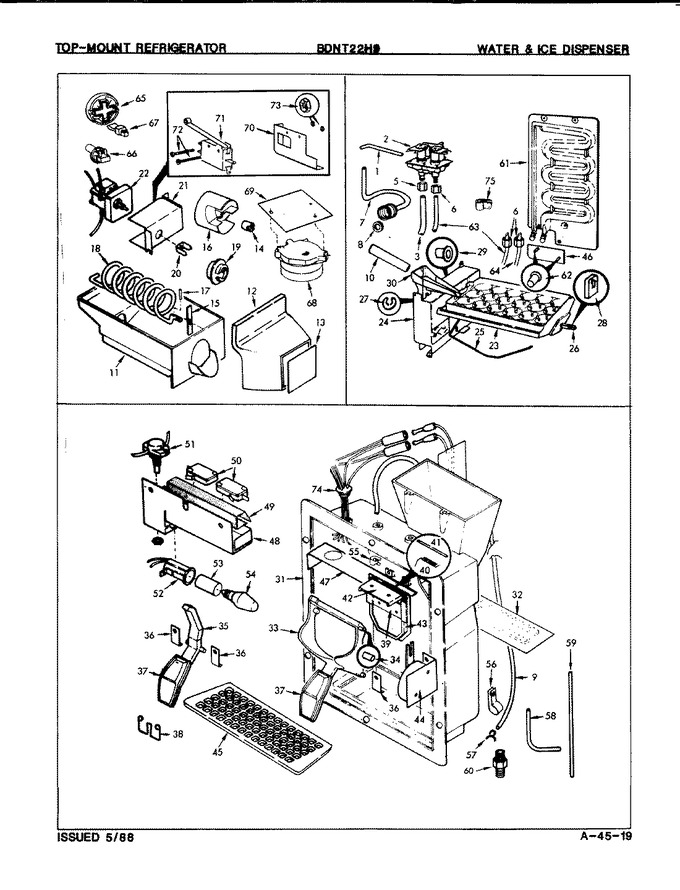

01 - Freezer Compartment


02 - Unit Compartment & System


03 - Water & Ice Dispenser


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66758-2		Tube		Appelez-nous	-
1	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
2	401018-1		Screw		Appelez-nous	-
2	56595-3		Valve, Water		Appelez-nous	-
3	55603-8		Tubing		Appelez-nous	-
4	400048-28		Screw		Appelez-nous	-
4	WPB5705307		Tubing   (Replaces: 55602-29)				$ 11.19
5	55604-1		Nut, Compression (5/16``)		Appelez-nous	-
6	WP627018		Nut, Compression (1/4``)   (Replaces: 55419-1)				$ 9.87
7	60219-1		Inlet Tubing Assembly		Appelez-nous	-
8	24685-5		Washer, Inlet Tubing Nut		Appelez-nous	-
9	WPB5705307		Tubing   (Replaces: 55602-3)				$ 11.19
10	58461-3		Tube, Fill		Appelez-nous	-
11	66447-1		Bin, Ice		Appelez-nous	-
12	66205-1		Ice Disp Front		Appelez-nous	-
12	WP1163283		Screw   (Replaces: 405022-103)				$ 6.47
13	65707-11		Insert		Appelez-nous	-
14	66098-1		Nut, Auger		Appelez-nous	-
15	63084-1		Hub, Reinforcing		Appelez-nous	-
16	66448-1		Impeller, Auger		Appelez-nous	-
17	63071-1		Pin, Auger		Appelez-nous	-
18	66435-1		Auger		Appelez-nous	-
19	63017-1		Ring, Drive		Appelez-nous	-
20	WP63052-2		Yoke, Ice Dispenser   (Replaces: 63052-1)			Immediately	$ 62.02
21	60559-2		Motor Bracket		Appelez-nous	-
21	W11233072		Screw   (Replaces: 400016-1)			Immediately	$ 12.62
22	54653-31		Lead		Appelez-nous	-
22	12001773		Motor, Auger   (Replaces: 65186-1)				$ 312.61
23	WP59688-1A		Tray, Ice   (Replaces: 59688-1)				$ 18.71
24	RA43714-8		Mechanism, Ice Maker		Appelez-nous	-
24	400018-103		Screw		Appelez-nous	-
25	60467-1		Sensor Arm		Appelez-nous	-
26	65319-1		Shaft, Drive		Appelez-nous	-
27	58706-1		Ring, Retainer		Appelez-nous	-
28	65318-1		Clip, Drive Shaft				$ 23.83
29	65317-1		Spacer		Appelez-nous	-
30	405009-103		Screw		Appelez-nous	-
30	53748-1		Spout, Fill		Appelez-nous	-
31	405022-1		Screw		Appelez-nous	-
31	63000-5		Dispenser, Water		Appelez-nous	-
32	60508-1		Heater		Appelez-nous	-
33	66620-1		Actuator Arm (ice)				$ 37.54
34	55602-21		Tubing, Arm Pins		Appelez-nous	-
35	66618-1		Actuator Arm (water)				$ 41.04
36	63035-2		Clip		Appelez-nous	-
37	63066-1		Pad, Arm				$ 26.40
37	402015-103		Screw, Ice Door		Appelez-nous	-
38	63306-1		Spring		Appelez-nous	-
38	66616-1		Cover		Appelez-nous	-
39	RA43825-1		Door Assy., Ice		Appelez-nous	-
40	63428-1		Spring, Ice Door		Appelez-nous	-
41	63053-1		Pin, Ice Door		Appelez-nous	-
42	402015-103		Screw, Ice Door		Appelez-nous	-
42	63014-1		Bracket, Ice Door		Appelez-nous	-
43	63089-2		Insulation		Appelez-nous	-
43	66007-1		Boot, Ice Door		Appelez-nous	-
44	RA95059-1		Insulation Kit		Appelez-nous	-
44	65517-1		Clip		Appelez-nous	-
44	65212-1		Motor, Inertia		Appelez-nous	-
45	63025-1		Grill		Appelez-nous	-
46	65497-1		Cover		Appelez-nous	-
46	60624-1		Wire Harness		Appelez-nous	-
46	60523-1		Wire Harness		Appelez-nous	-
47	63036-1		Foil, Barrier Front		Appelez-nous	-
48	27116-4		Wire Nut		Appelez-nous	-
48	63013-2		Bracket, Switch		Appelez-nous	-
49	65333-1		Insulator, Switch		Appelez-nous	-
50	55440-2		Switch, Ice & Water				$ 11.94
51	63040-1		Switch, Light		Appelez-nous	-
51	405071-1		Screw		Appelez-nous	-
52	63039-1		Socket, Light		Appelez-nous	-
53	401011-1		Screw		Appelez-nous	-
53	63056-1		Seal		Appelez-nous	-
54	W10857122		Bulb, Light   (Replaces: 63179-1)				$ 12.45
55	60333-1		Clamp, Spring		Appelez-nous	-
56	53516-9		Clamp		Appelez-nous	-
57	9602-9		Clamp, Tubing		Appelez-nous	-
58	63038-2		Water Line		Appelez-nous	-
59	WP67006908		Screw   (Replaces: 400022-1)			Immediately	$ 7.16
59	WP2205813		Wire Tie   (Replaces: 66223-1)				$ 6.95
59	63459-2		Instalation Kit		Appelez-nous	-
59	62028-4		Spacer		Appelez-nous	-
59	65002-15		Tubing, Water Line		Appelez-nous	-
59	60333-2		Clamp, Spring		Appelez-nous	-
60	WP2198677		Union, Tubing (1/4``-1/4``)   (Replaces: 59205-1)			Immediately	$ 24.98
60	65292-3		Wire Harness		Appelez-nous	-
60	WP627018		Nut, Compression (1/4``)   (Replaces: 55419-1)				$ 9.87
60	64329-1		Tubing		Appelez-nous	-
61	65457-1		Tank, Water		Appelez-nous	-
62	29356-1		Retainer, Nameplate		Appelez-nous	-
66	ES18809		Switch, Auger Shut Off   (Replaces: 65177-1)				$ 11.30
67	65185-1		Strike, Auger Box		Appelez-nous	-
68	65132-1		Control, Auger Motor		Appelez-nous	-
68	405022-1		Screw		Appelez-nous	-
69	65798-1		Insulator		Appelez-nous	-
70	65286-2		Bracket		Appelez-nous	-
71	406043-1		Screw		Appelez-nous	-
71	65285-1		Switch, 2 Circuit		Appelez-nous	-
71	WP488234		Screw   (Replaces: 406026-103)				$ 6.07
72	405072-1		Screw		Appelez-nous	-
73	430002-1		Nut		Appelez-nous	-
74	60624-1		Wire Harness		Appelez-nous	-
75	53516-2		Clamp		Appelez-nous	-
