SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System


05 - Water & Ice Dispenser


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60519-4-AM		Panel, Outer Door		Appelez-nous	-
2	60519-5-AM		Panel, Outer Door		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
3	64003-2		Handle		Appelez-nous	-
4	65983-1		Perimeter Trim		Appelez-nous	-
5	65985-2		Perimeter Trim		Appelez-nous	-
6	65987-1		Perimeter Trim		Appelez-nous	-
7	65211-1		Retainer, Nameplate		Appelez-nous	-
8	64003-3		Handle		Appelez-nous	-
9	65985-1		Perimeter Trim		Appelez-nous	-
10	65986-1		Perimeter Trim		Appelez-nous	-
11	56209-2		Clip		Appelez-nous	-
11	9986-122		Screw		Appelez-nous	-
11	60123-2		Clip, Stop Screw		Appelez-nous	-
11	65987-1		Perimeter Trim		Appelez-nous	-
12	65937-7		Liner, Door		Appelez-nous	-
13	65275-5		Screw		Appelez-nous	-
13	66527-1		Inner Panel		Appelez-nous	-
14	66199-7		Gasket, Door		Appelez-nous	-
15	66199-8		Gasket, Door		Appelez-nous	-
16	66636-29		Trim		Appelez-nous	-
17	65151-266		Trim, Door Shelf		Appelez-nous	-
18	59258-92		Trim		Appelez-nous	-
19	65151-280		Trim, Door Shelf		Appelez-nous	-
20	WP61003045		Trim, Door Shelf   (Replaces: 65151-276)				$ 129.55
21	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
22	65246-1		Retainer				$ 5.04
23	66184-430		Door, Dairy		Appelez-nous	-
24	29936-2		Tray, Butter		Appelez-nous	-
25	53709-18		Door Hinge, Upper		Appelez-nous	-
26	65031-1		Shim, Upper Hinge		Appelez-nous	-
27	66036-1		Bushing,top/center Hinge		Appelez-nous	-
28	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
28	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
29	60031-2		Door Hinge, Center		Appelez-nous	-
30	60034-1		Spacer, Center Hinge		Appelez-nous	-
31	60622-1		Tapping Plate		Appelez-nous	-
31	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
32	60035-4		Pin, Center Hinge		Appelez-nous	-
33	65642-2		Hinge		Appelez-nous	-
33	403062-5		Screw		Appelez-nous	-
34	60626-1		Shim, Lower Hinge		Appelez-nous	-
35	66037-1		Hinge Bushing		Appelez-nous	-
36	54233-4		Spacer				$ 7.70
37	65418-1		Pin		Appelez-nous	-
38	60030-2		Door Stop		Appelez-nous	-
39	60123-2		Clip, Stop Screw		Appelez-nous	-
39	9986-108		Screw		Appelez-nous	-
39	60419-6		Door Stop		Appelez-nous	-
40	60572-66		Insert		Appelez-nous	-
41	60037-46		Door Shelf		Appelez-nous	-
42	60572-61		Insert		Appelez-nous	-
43	60037-43		Door Shelf		Appelez-nous	-
44	60572-62		Insert		Appelez-nous	-
45	60037-42		Door Shelf		Appelez-nous	-
46	60066-8		Tray, Egg		Appelez-nous	-
47	402038-1		Screw		Appelez-nous	-
47	66775-5		Collar		Appelez-nous	-
48	60482-40		Escutcheon		Appelez-nous	-
49	65211-2		Retainer, Escutcheon		Appelez-nous	-
50	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
50	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-

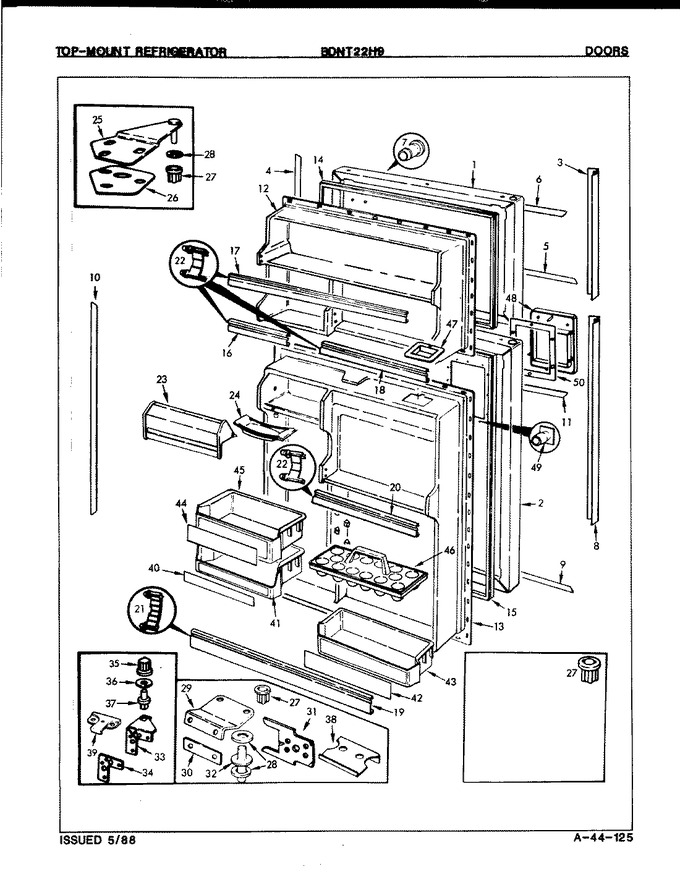

    View Diagram in Separate Window       Print Part List
